X210

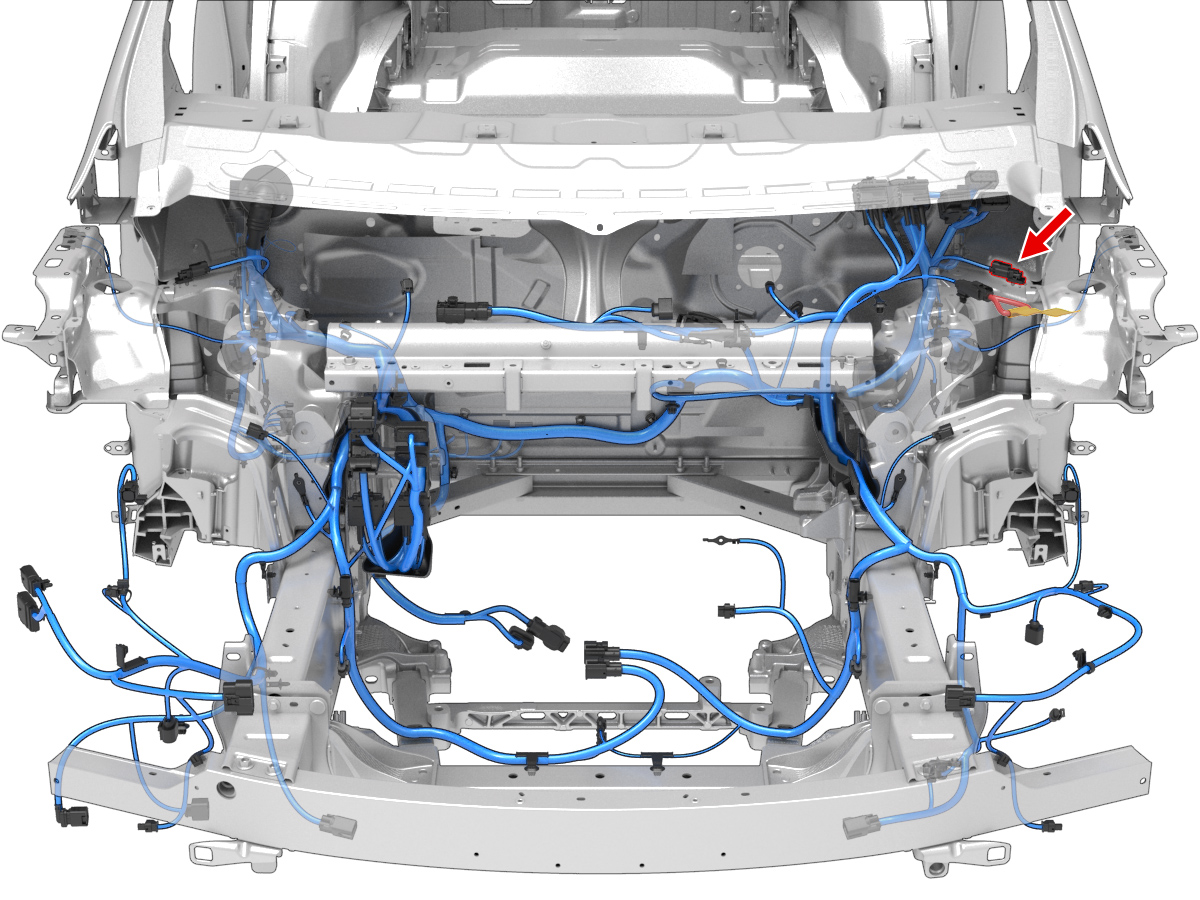

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4221-08 | 1.0x0.64F | BN | 0.50 | YAZAKI | 7158-3070-80 | X037 | 2 |
| 2 | YAZAKI | 7116-4221-08 | 1.0x0.64F | WH | 0.50 | YAZAKI | 7158-3070-80 | X037 | 1 |
