X216

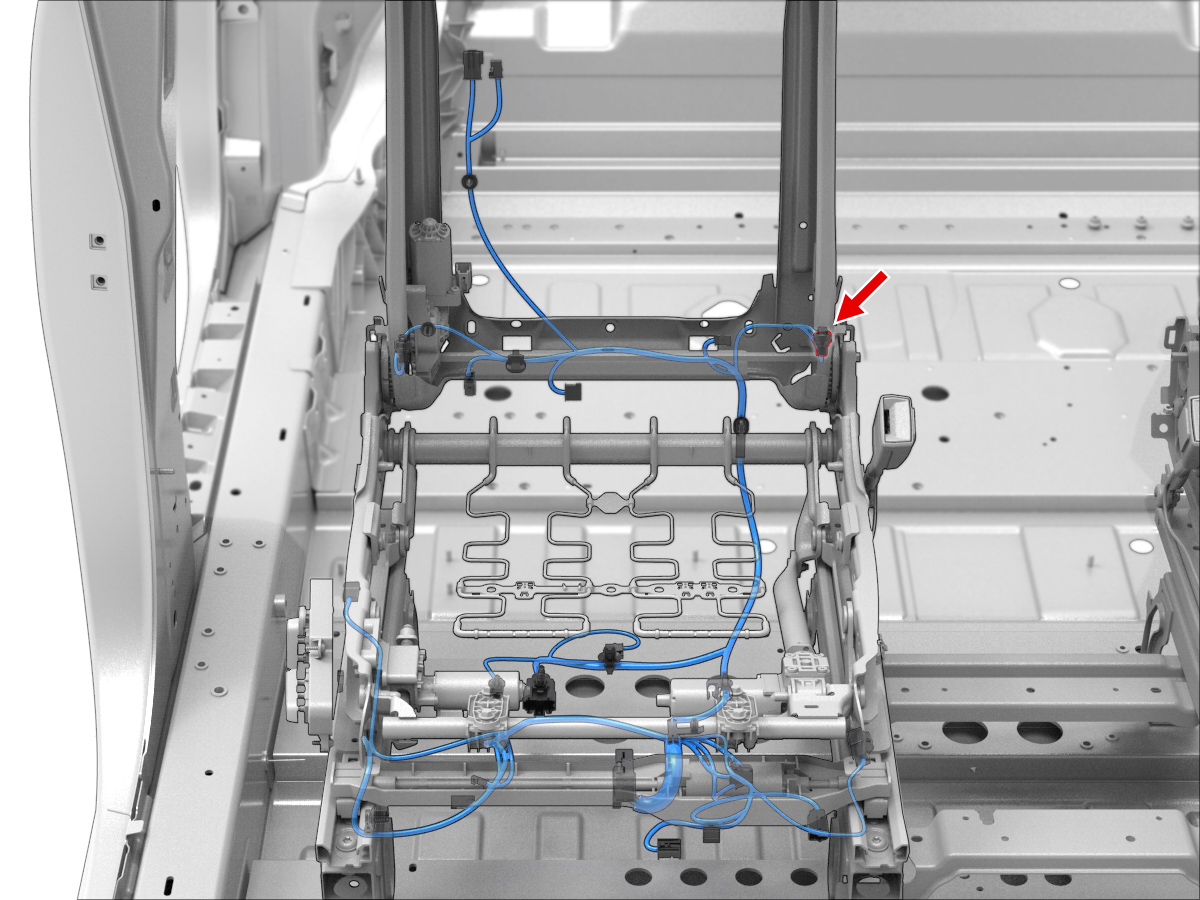

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | PIA | TERM-AU | PIA-F | GN/GY | 0.35 | X1002 | 16 | ||
| 2 | PIA | TERM-AU | PIA-F | VT/BU | 0.35 | X1002 | 17 |
