X219

Tesla Part Number
1046680-00-A
Connector
MOLEX 33471-0447
Color
GY

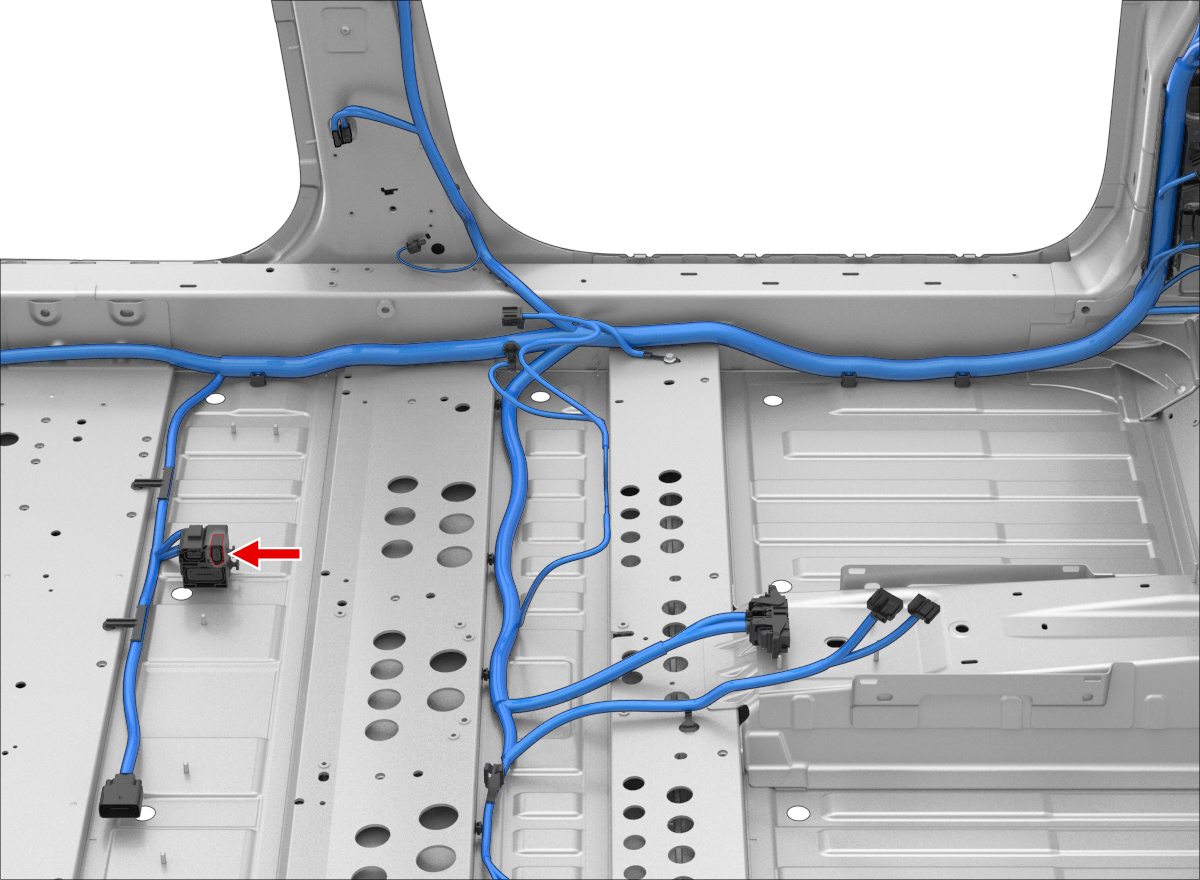

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX33001-30061.5x0.8FBN0.35TESLAMAT-120-240X20122
2MOLEX33001-30061.5x0.8FGY0.35TESLAMAT-120-240X20121
3MOLEX33001-30061.5x0.8FBK0.35TESLAMAT-120-240G2501
4unused
