X221

Tesla Part Number
1608462-03-B
Connector
DELPHI 35372157
Color
GN

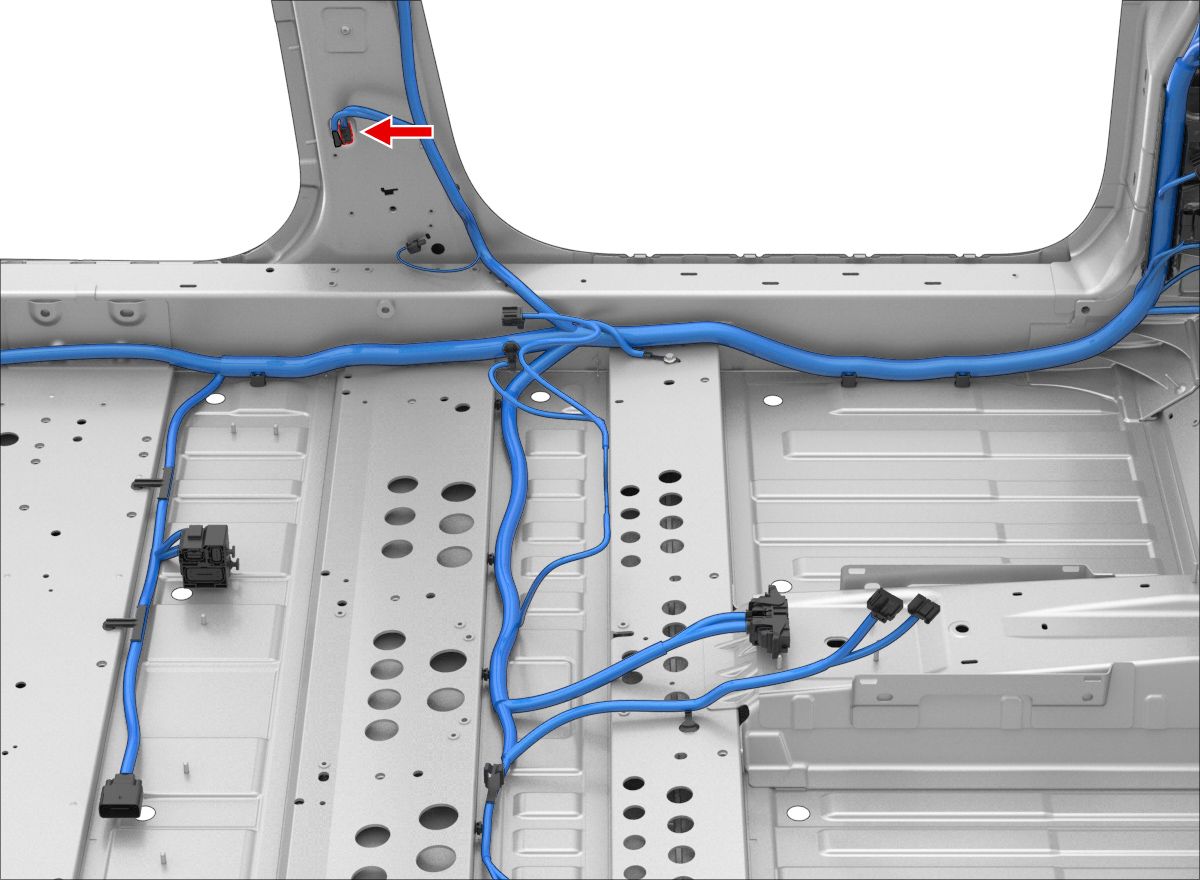

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-SRS-SBU0.35X20117
2GENPIA-SRS-SVT0.35X20118
