X232

Tesla Part Number
1493986-00-B
Connector
DELPHI 35263936
Color
PK

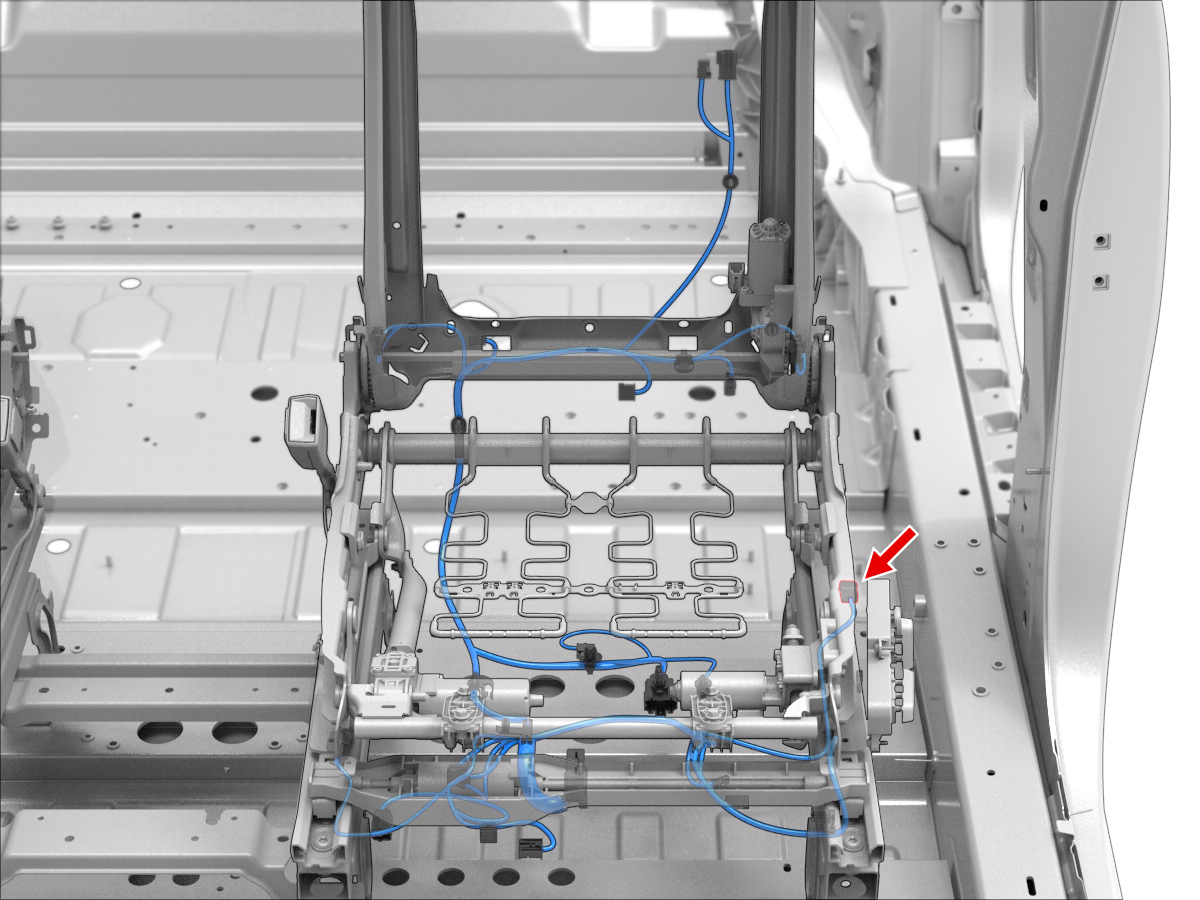

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-SRS-SWH0.35X910M13
2GENPIA-SRS-SBU0.35X910M14
