X250

Tesla Part Number

1635301-00-A

Connector

DELPHI 15354653

Color

BK

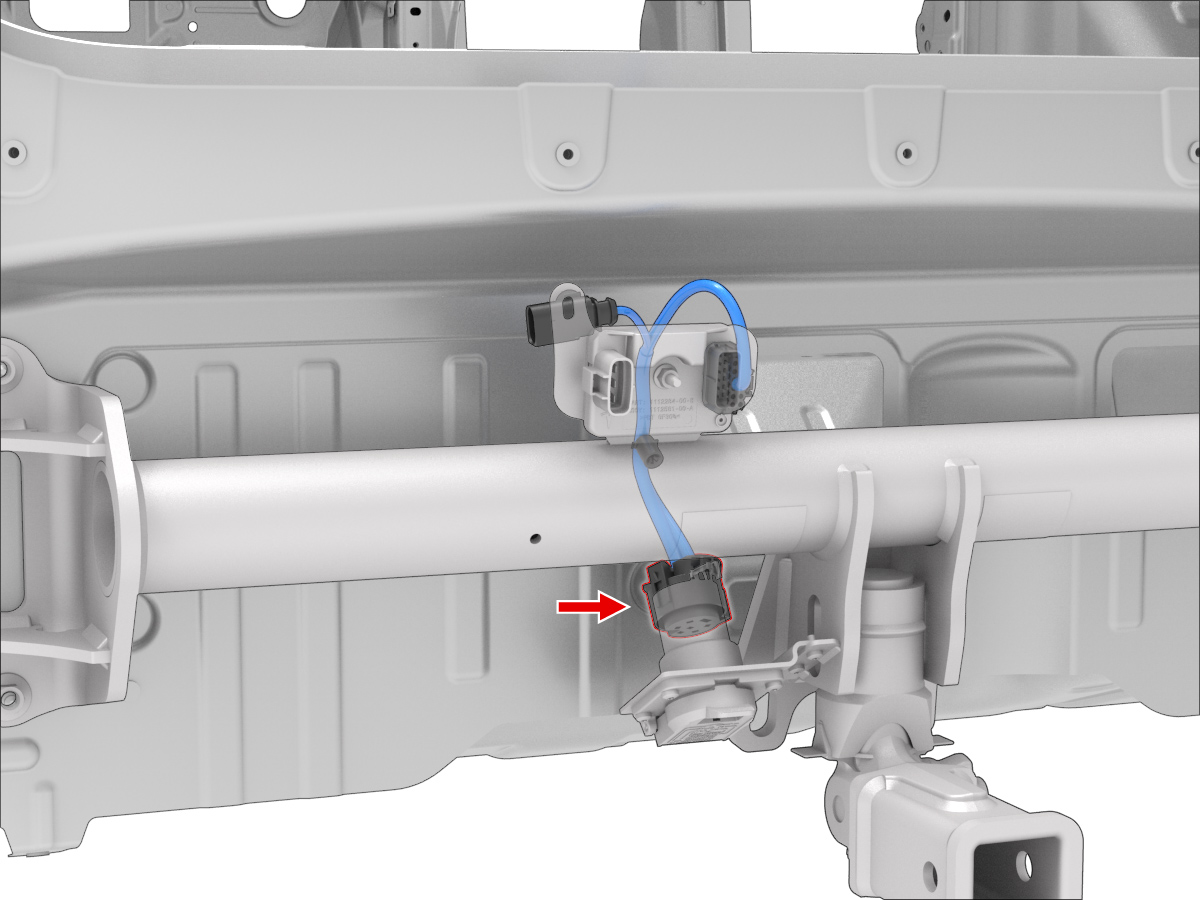

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
G	DELPHI	12110847	0.32x3.7	YE	0.75	DELPHI	15324985	X277	10
B	DELPHI	12052456	0.8x6.3	WH	3.00	DELPHI	15324994
C	DELPHI	12110845	0.32x3.7	BU	2.50	DELPHI	15324980	X901M	1
D	DELPHI	12110847	0.32x3.7	GN	0.75	DELPHI	15324985	X277	5
E	DELPHI	12110845	0.32x3.7	RD	2.50	DELPHI	15324980	X901M	2
F	DELPHI	12110847	0.32x3.7	BN	0.75	DELPHI	15324985	X277	9
A	DELPHI	12110847	0.32x3.7	GY	0.75	DELPHI	15324985	X277	4
