X260

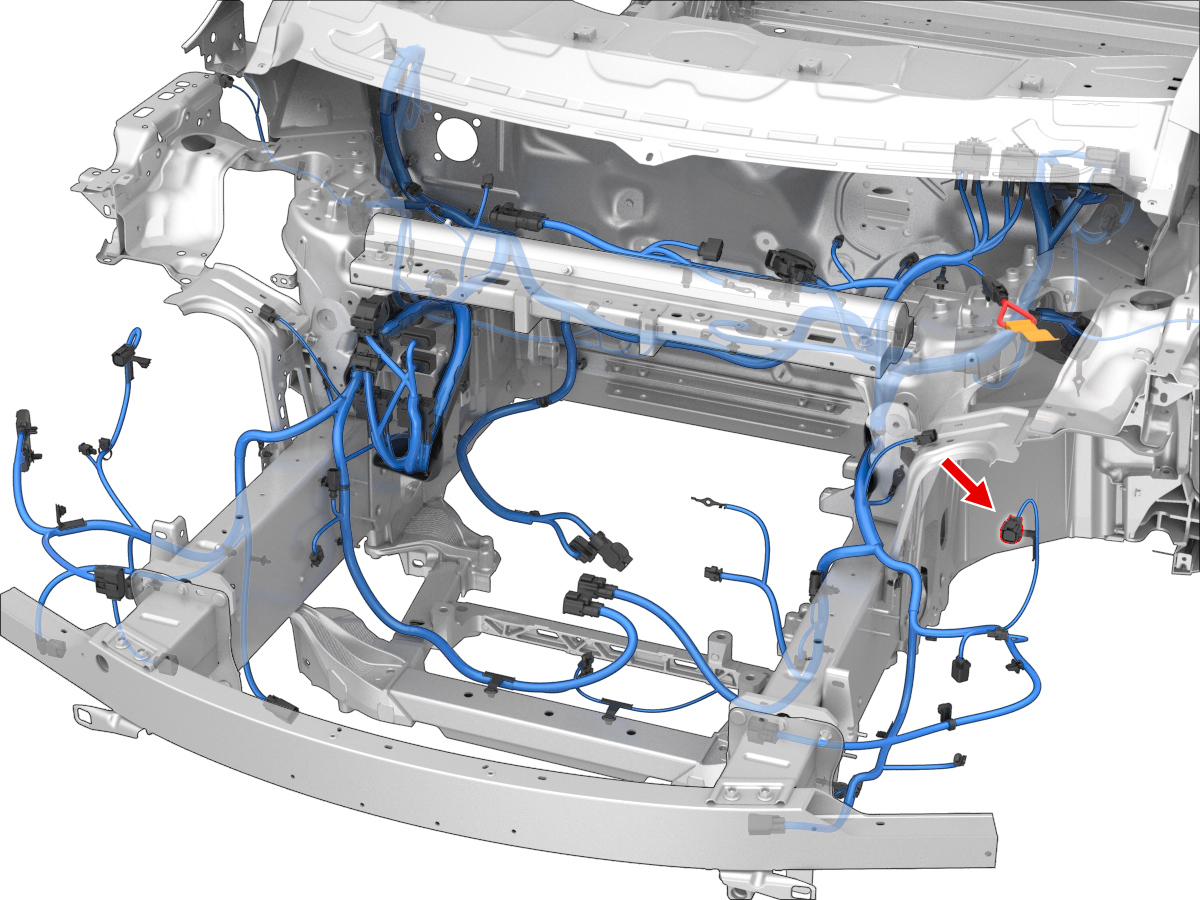

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | MOLEX | 33012-3001 | 1.5x0.8F | RD | 1.50 | TESLA | MAT-120-240 | X025 | A1 |
| 5 | MOLEX | 33012-3004 | 1.5x0.8F | BU | 0.50 | TESLA | MAT-120-240 | X025 | J3 |
| 6 | MOLEX | 33012-3001 | 1.5x0.8F | BK | 1.50 | TESLA | MAT-120-240 | G150 | 9 |
