X263

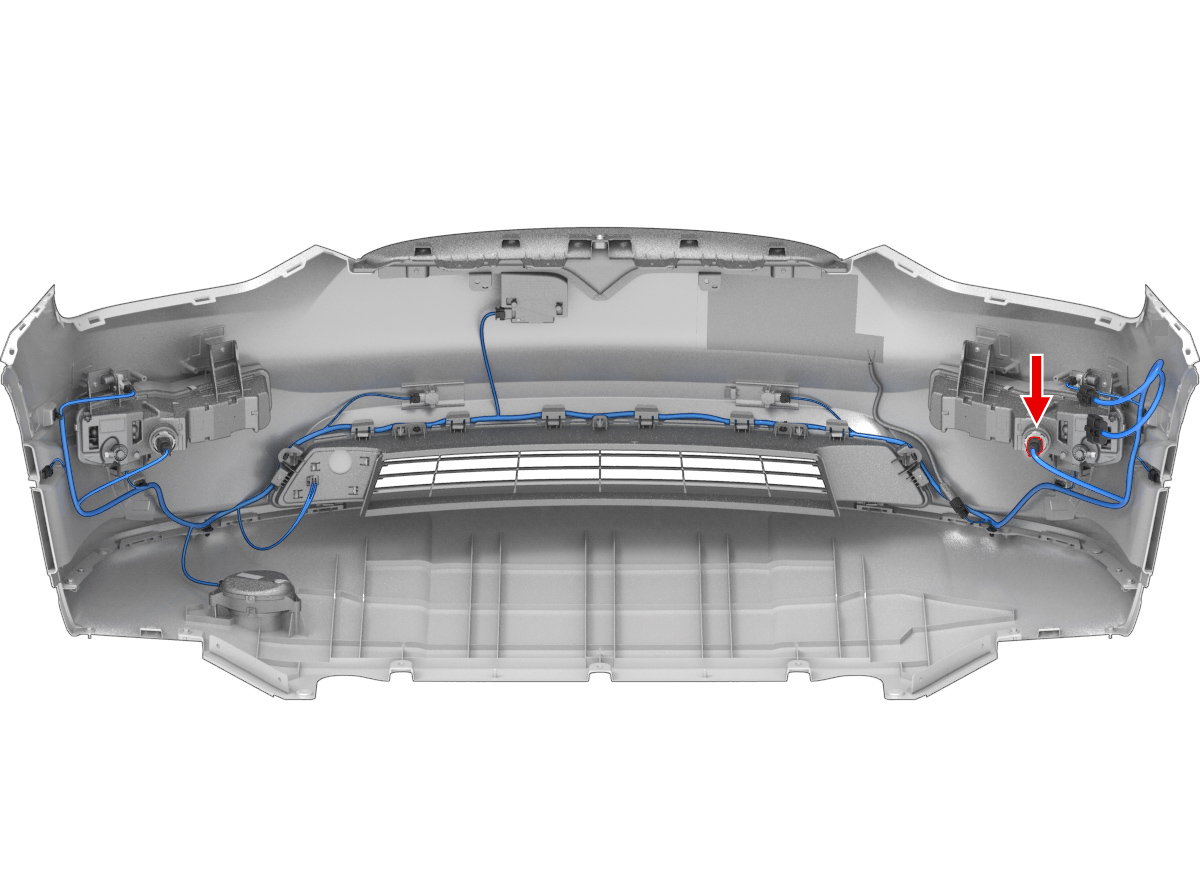

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3004 | 1.5x0.8F | VT | 0.50 | TESLA | MAT-120-240 | X964F | 10 |
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | WH | 0.35 | TESLA | MAT-120-240 | X964F | 3 |
| 3 | MOLEX | 33012-3004 | 1.5x0.8F | RD | 0.35 | TESLA | MAT-120-240 | X964F | 17 |
| 4 | MOLEX | 33012-3004 | 1.5x0.8F | YE | 0.35 | TESLA | MAT-120-240 | X964F | 2 |
| 5 | MOLEX | 33012-3004 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | ||
| 6 | unused | ||||||||
