X271

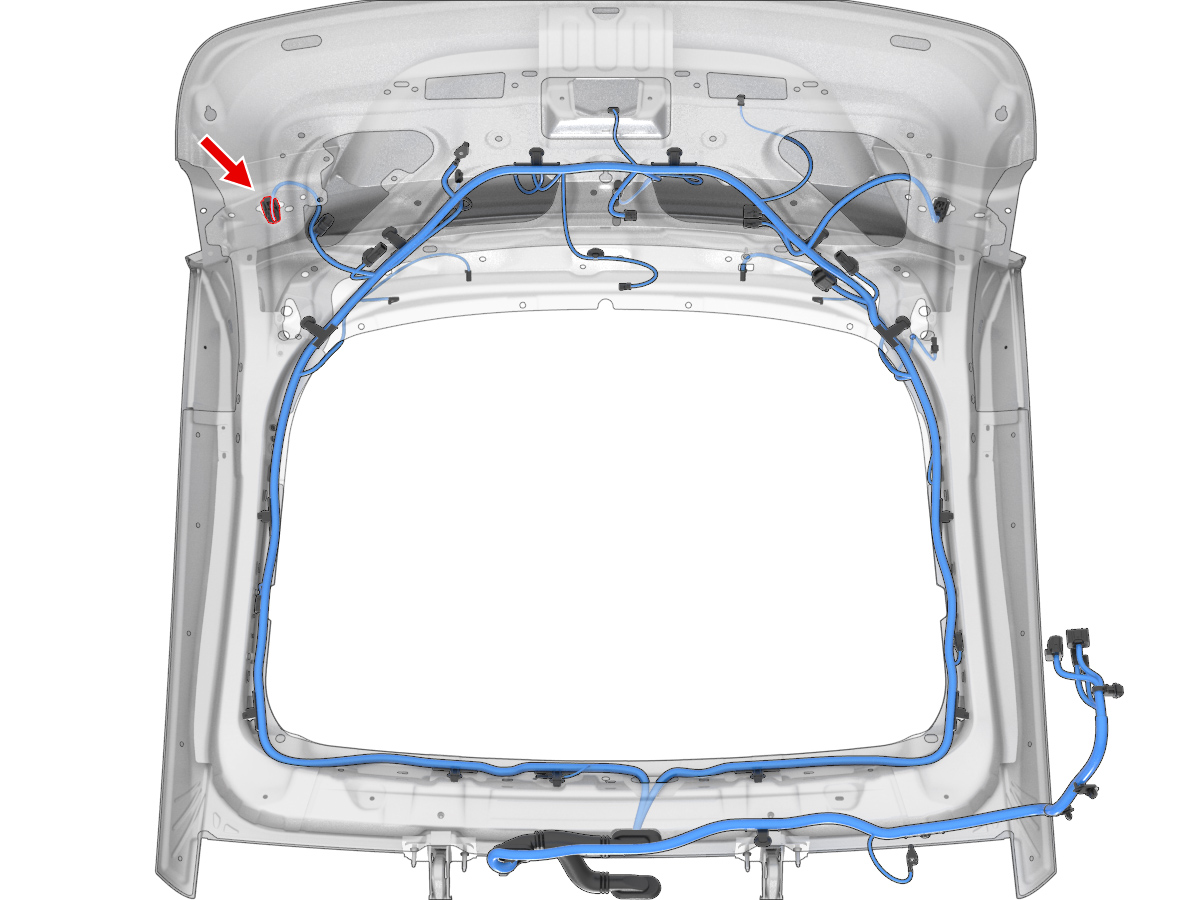

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | DELPHI | 35031567 | 1.5x0.8F | YE | 0.35 | TESLA | MAT-120-260 | X955F | 9 |
| 3 | DELPHI | 35031567 | 1.5x0.8F | BU | 0.35 | TESLA | MAT-120-260 | X955F | 10 |
| 4 | DELPHI | 35031567 | 1.5x0.8F | RD | 0.35 | TESLA | MAT-120-260 | X955F | 11 |
| 5 | unused | ||||||||
| 6 | DELPHI | 35031567 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-260 | G720 | 1 |
