X273

Tesla Part Number
1459250-01-A
Connector
DELPHI 35247624
Color
BK

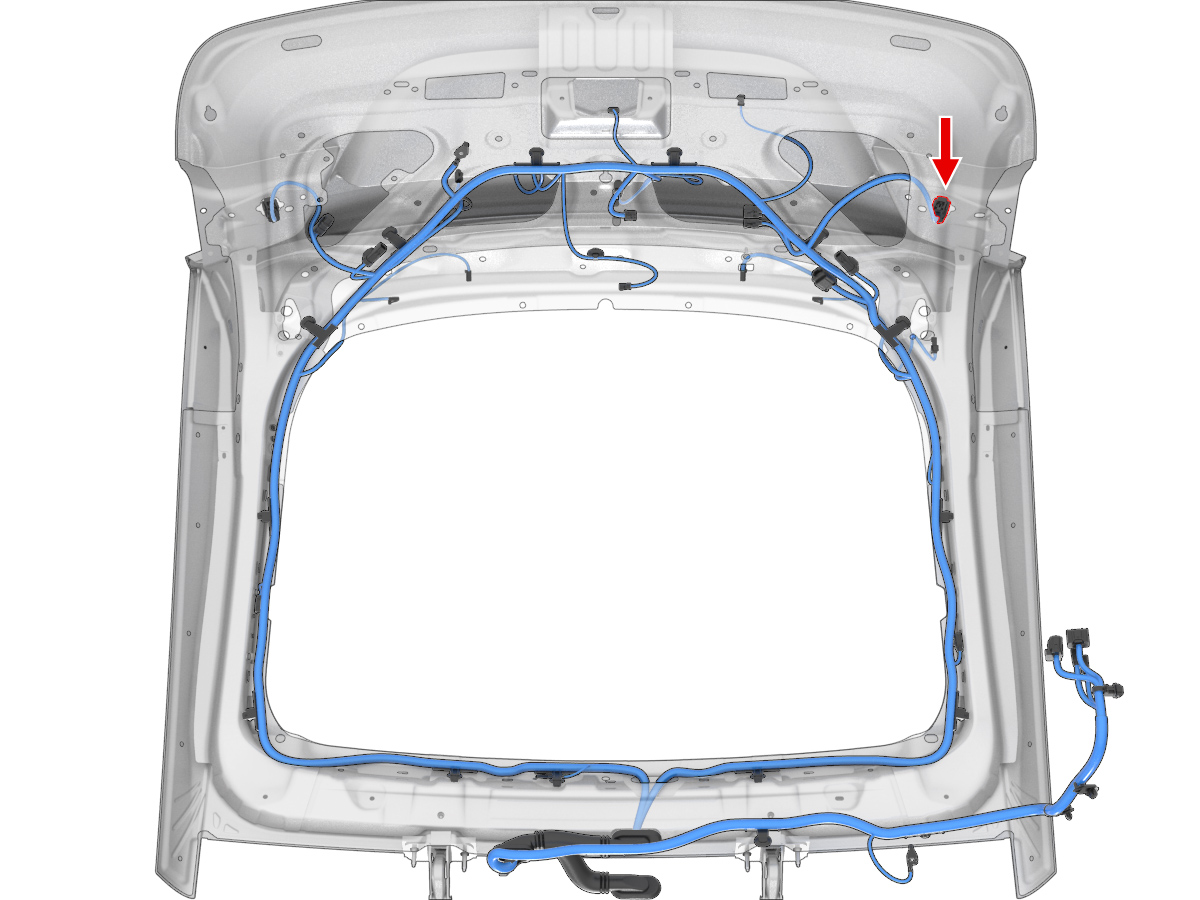

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1unused
2DELPHI350315671.5x0.8FYE0.35TESLAMAT-120-260X955F4
3DELPHI350315671.5x0.8FVT0.35TESLAMAT-120-260X955F2
4DELPHI350315671.5x0.8FRD0.35TESLAMAT-120-260X955F1
5unused
6DELPHI350315671.5x0.8FBK0.50TESLAMAT-120-260G7201
