X274

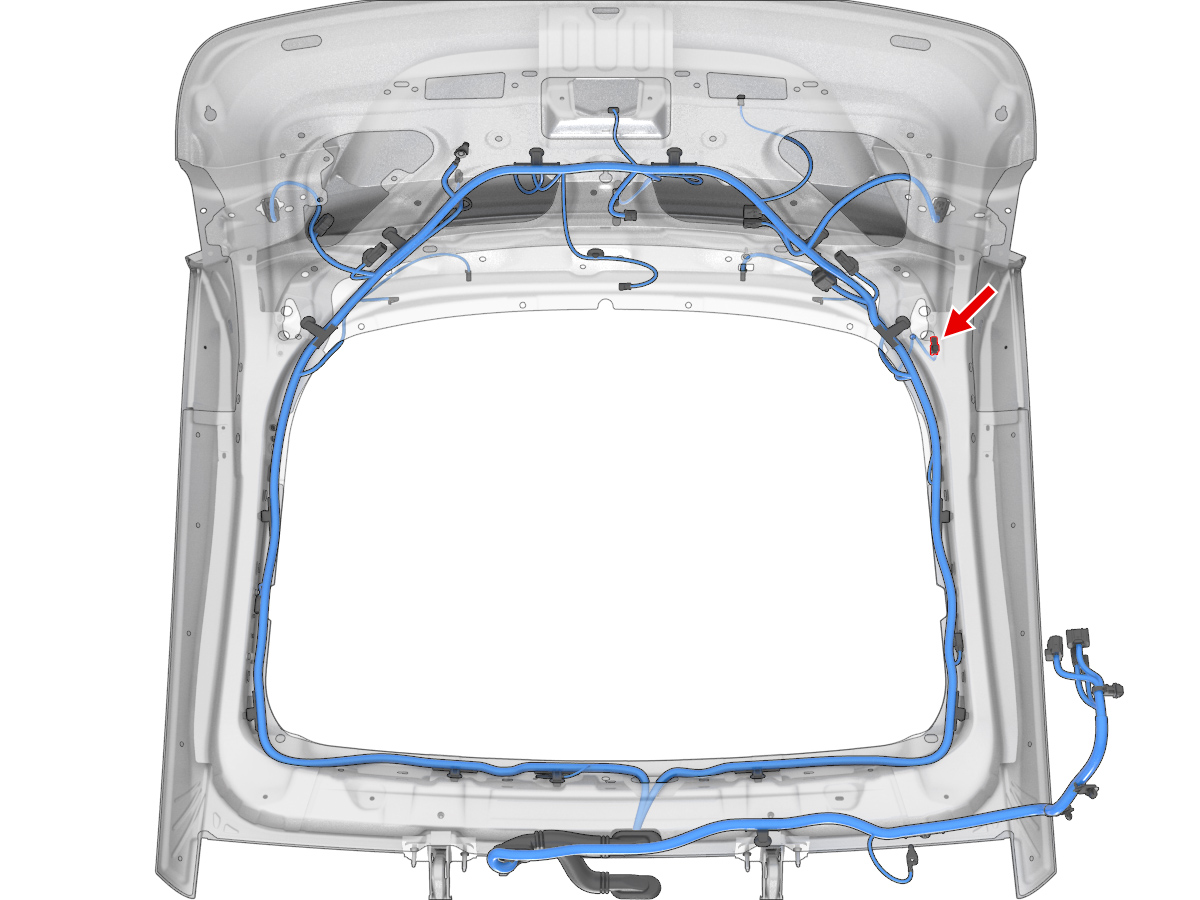

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | JST | SWPT-001T-P025 | 0.64x0.64N | WH | 0.35 | TESLA | MAT-120-170 | X955F | 3 |
| 2 | JST | SWPT-001T-P025 | 0.64x0.64N | BK | 0.35 | TESLA | MAT-120-170 | G720 | 1 |
