X300

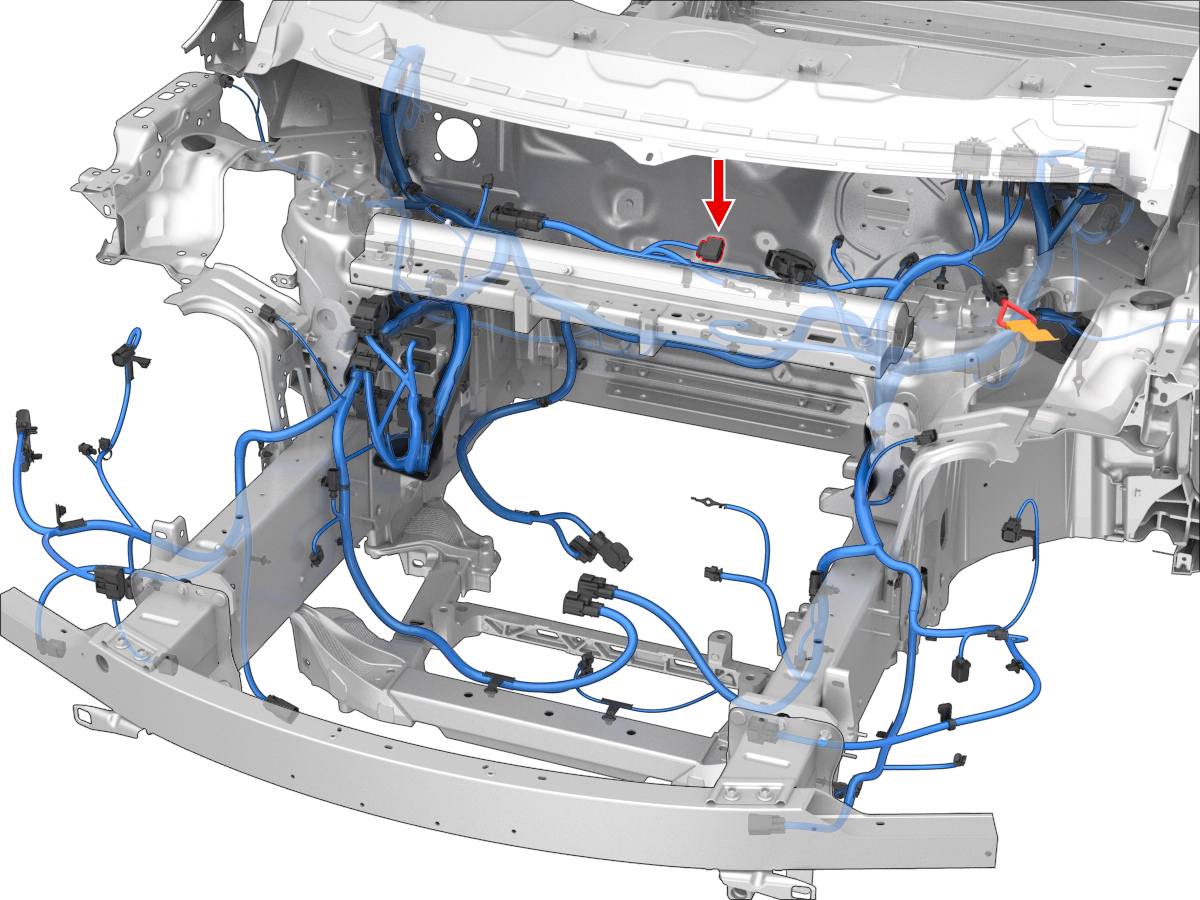

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 964273-2 | 2.8x0.8FS | WH | 2.50 | AMP | 963292-1 | X012 | 3 |
| 2 | AMP | 964273-2 | 2.8x0.8FS | BK | 2.50 | AMP | 963292-1 | G150 | 11 |
| 3 | unused | ||||||||
| 4 | AMP | 964282-2 | 2.8x0.8FS | GN | 0.35 | AMP | 963294-1 | X011 | 24 |
