X302

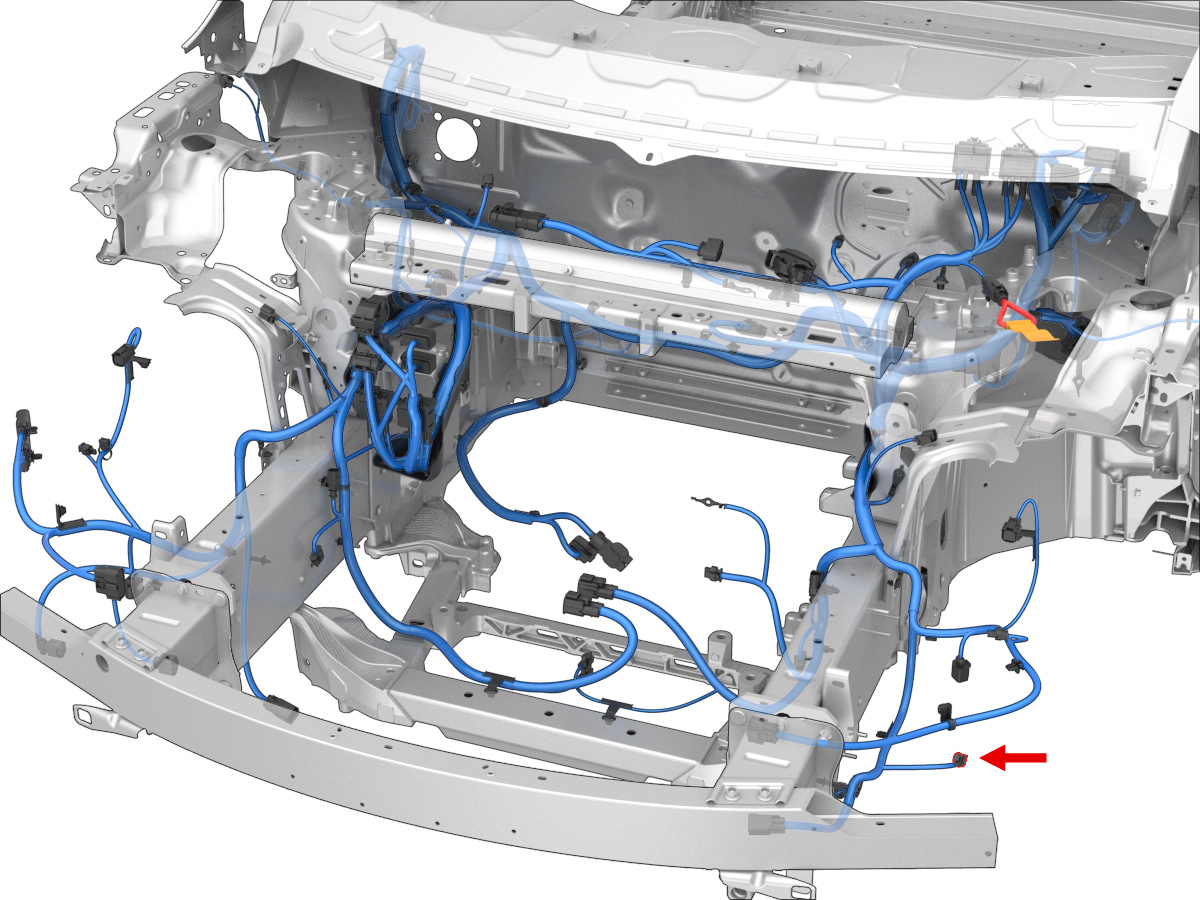

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12124076 | 1.5X0.6FS | BN | 0.50 | TESLA | MAT-125-185 | X011 | 20 |
| B | DELPHI | 12124076 | 1.5X0.6FS | BU | 0.50 | TESLA | MAT-125-185 | X010 | G5 |
