X329A

Tesla Part Number

1734166-00-A

Connector

HIRSCHMANN 807-602-521

Color

BK

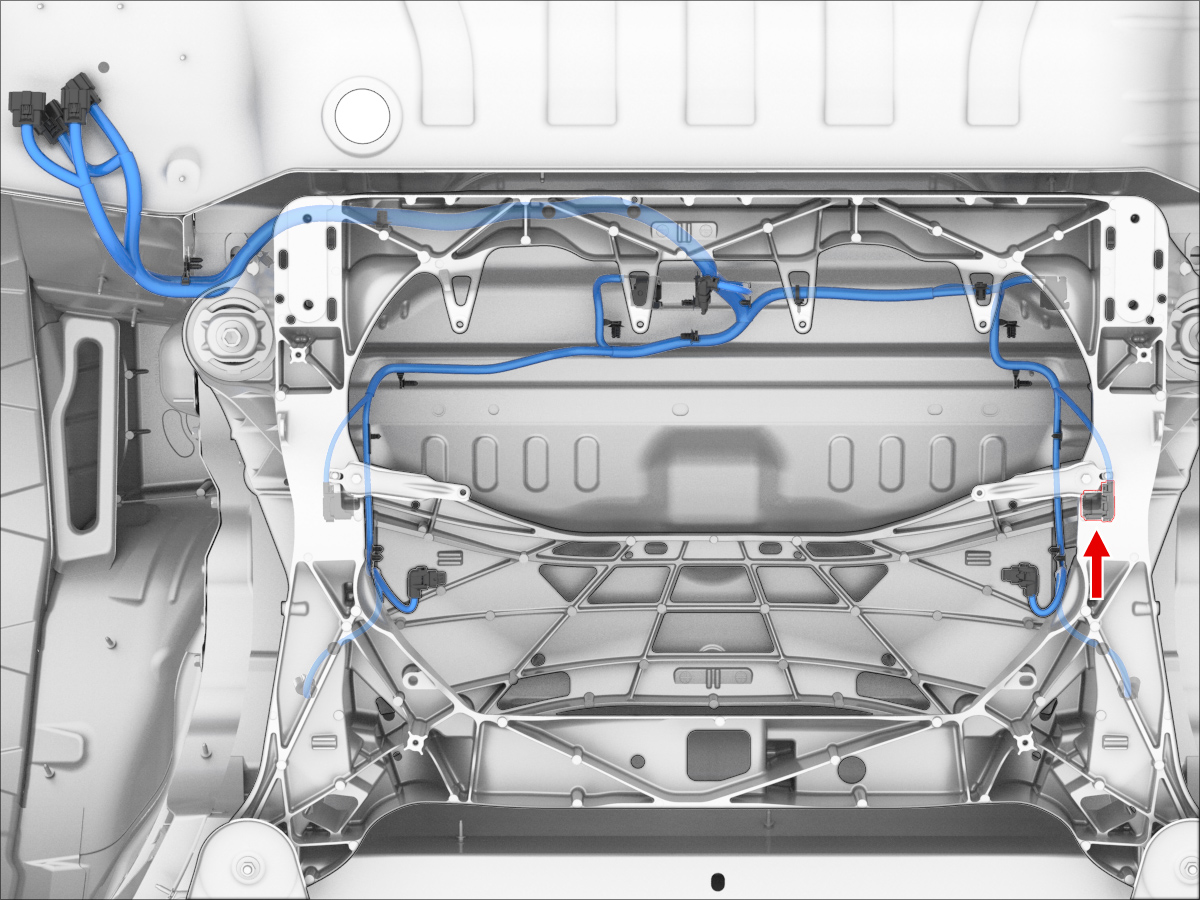

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	7-1452665-2	1.2x0.6FS	WH	0.35	AMP	967067-2	X328A	28
2	unused
3	AMP	7-1452665-2	1.2x0.6FS	YE	0.35	AMP	967067-2	X328A	26
4	AMP	7-1452665-2	1.2x0.6FS	GN	0.35	AMP	967067-2	X328A	17
5	AMP	7-1452665-2	1.2x0.6FS	VT	0.35	AMP	967067-2	X328A	8
6	AMP	7-1452665-2	1.2x0.6FS	GY	0.35	AMP	967067-2	X328A	18
7	unused
8	AMP	7-1452665-2	1.2x0.6FS	BK	0.35	AMP	967067-2	X328A	16
9	AMP	7-1452665-2	1.2x0.6FS	RD	0.35	AMP	967067-2	X328A	7
10	AMP	7-1452665-2	1.2x0.6FS	BU	0.35	AMP	967067-2	X328A	27
