X333

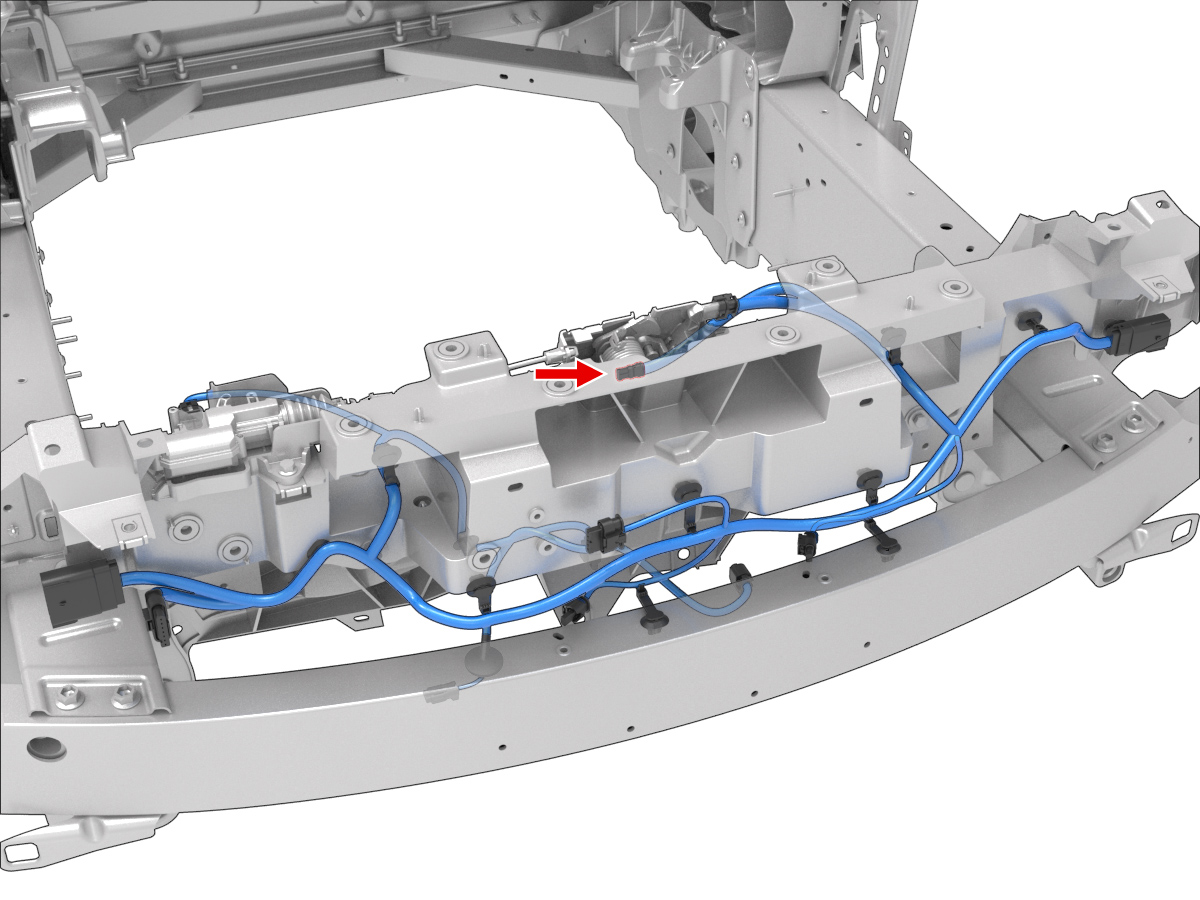

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2-1703930-1 | 0.50x0.40F | WH | 0.35 | TESLA | MAT-110-130 | X907M | 7 |
| 2 | AMP | 2-1703930-1 | 0.50x0.40F | BN/YE | 0.35 | TESLA | MAT-110-130 | ||
| 3 | AMP | 2-1703930-1 | 0.50x0.40F | GY | 0.35 | TESLA | MAT-110-130 | X906M | 4 |
| 4 | unused | ||||||||
