X340

Tesla Part Number
1015015-00-A
Connector
AMP 1241634-1
Color
BK

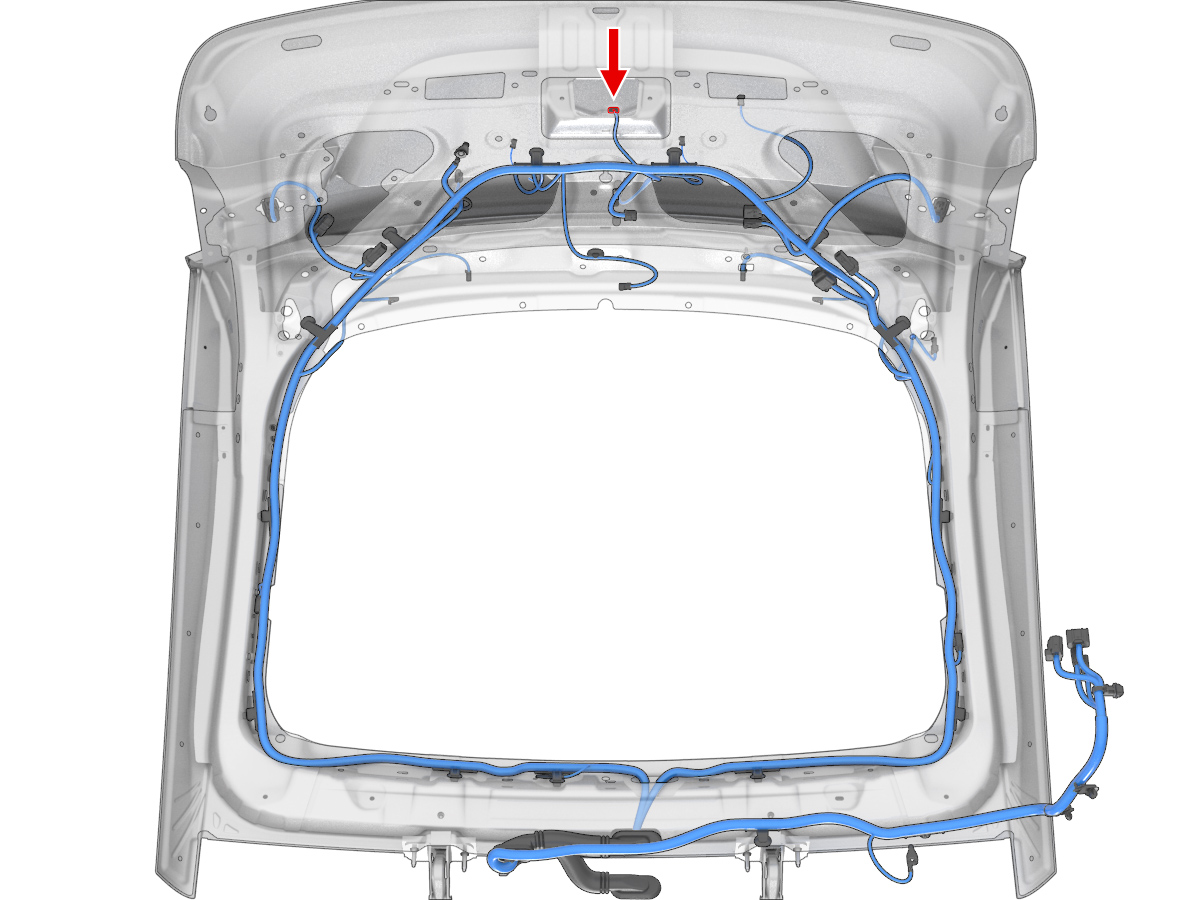

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-963715-10.63x0.63FYE0.50X955F14
2AMP5-963715-10.63x0.63FTN0.50X955F15
3AMP5-928999-10.63x0.63FBU0.35X954F10
4AMP5-928999-10.63x0.63FGY0.35X954F11
