X363

Tesla Part Number

1043580-00-A

Connector

SUMITOMO 6098-6203

Color

WH

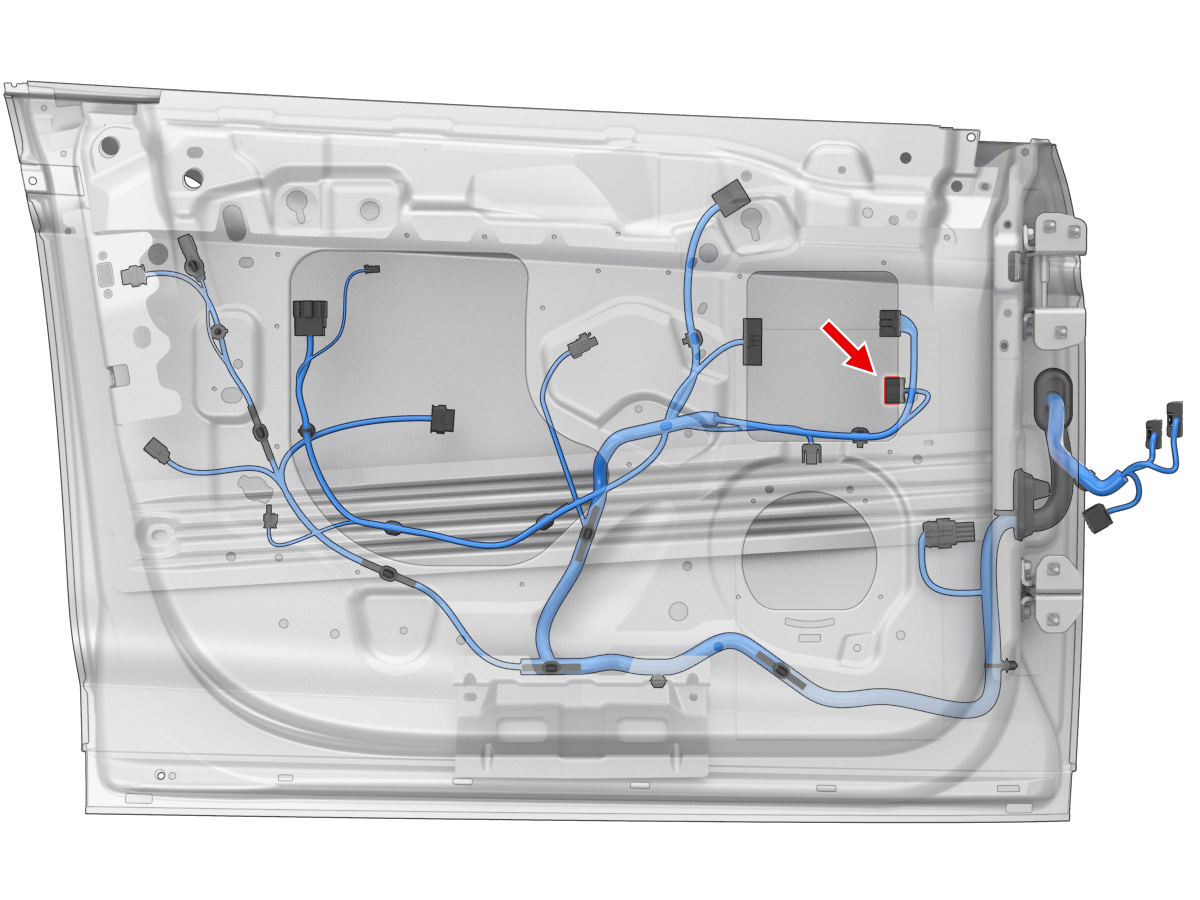

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X386	3
2	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X386	4
3	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X374	14
4	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X374	3
5	unused
6	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X374	1
7	unused
8	SUMITOMO	8240-0215	1.5x0.64F	BN/YE	0.50
9	unused
10	unused
11	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35
12	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50
13	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X385	6
14	unused
15	unused
16	unused
