X365

Tesla Part Number
1079896-00-A
Connector
AMP 1-1241370-3
Color
BK

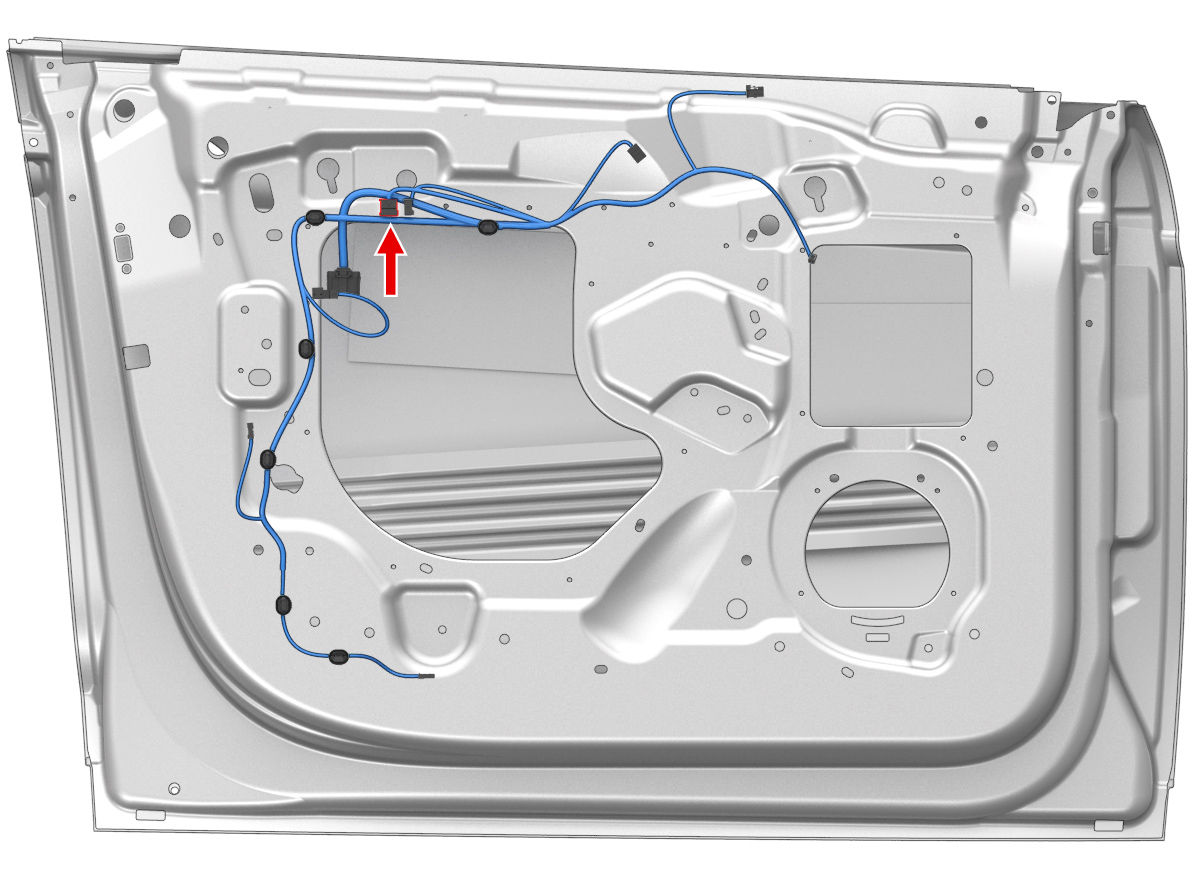

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FVT0.35X920M12
2AMP5-928999-10.63x0.63FGY0.35X920M14
3AMP5-928999-10.63x0.63FBU0.35X920M13
4AMP5-928999-10.63x0.63FYE0.35X920M15
5AMP5-928999-10.63x0.63FGY0.35X920M1
6AMP5-928999-10.63x0.63FBN0.35
