X374

Tesla Part Number

1042582-00-A

Connector

SUMITOMO 6098-3885

Color

WH

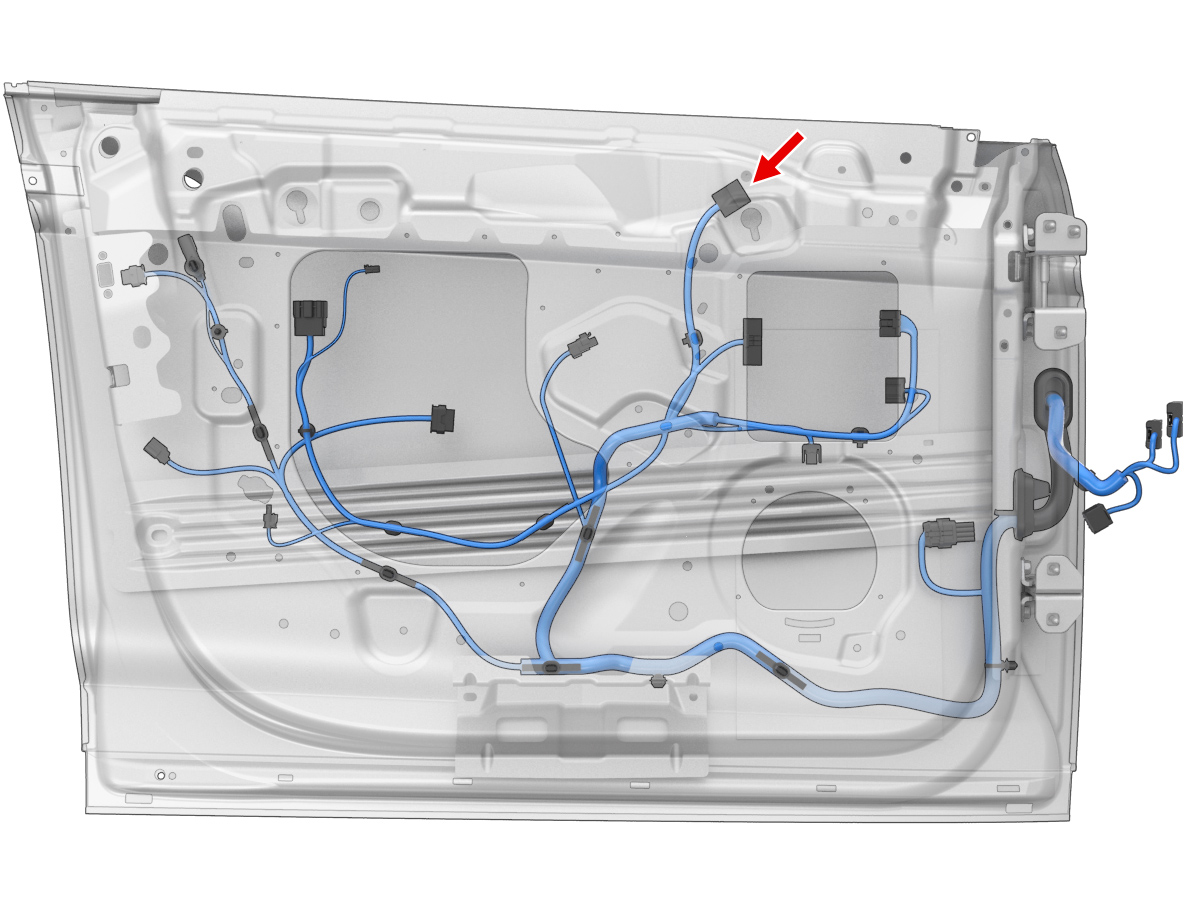

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X363	6
2	unused
3	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X363	4
4	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X361	40
5	unused
6	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X361	9
7	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X361	7
8	unused
9	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X361	25
10	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X361	26
11	unused
12	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35
13	unused
14	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X363	3
15	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35
16	unused
17	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X361	4
18	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X361	8
19	unused
20	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X361	24
21	unused
22	unused
