X416_1

Tesla Part Number

1015194-00-B

Connector

HIRSCHMANN 805-122-581

Color

BK

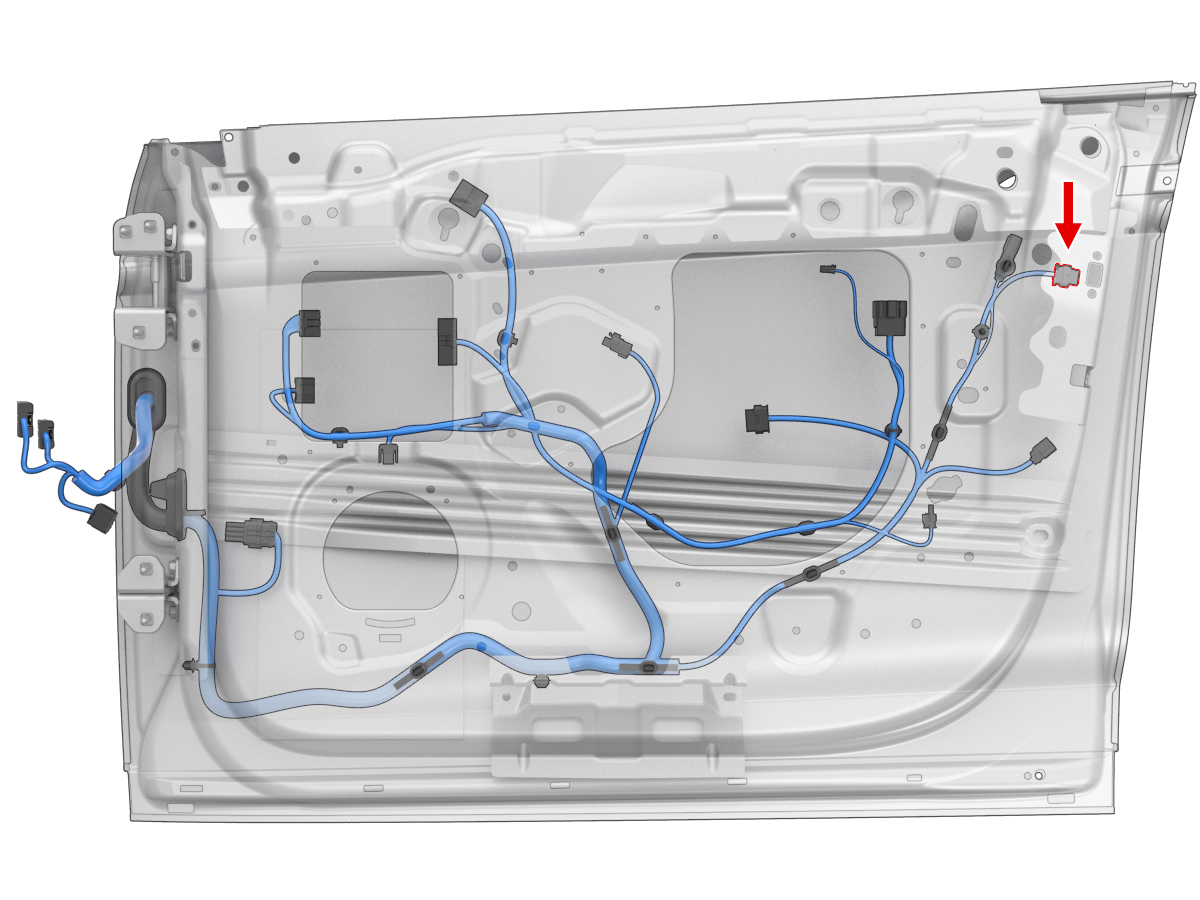

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	7-1452665-1	1.2x0.6FS	WH	0.35	AMP	967067-2	X391	37
2	AMP	7-1452665-1	1.2x0.6FS	BN	0.35	AMP	967067-2
3	AMP	7-1452665-1	1.2x0.6FS	VT	0.35	AMP	967067-2	X393	1
4	AMP	7-1452665-1	1.2x0.6FS	GY	0.35	AMP	967067-2	X393	2
