X420

Tesla Part Number

1043176-00-A

Connector

SUMITOMO 6098-4756

Color

NA

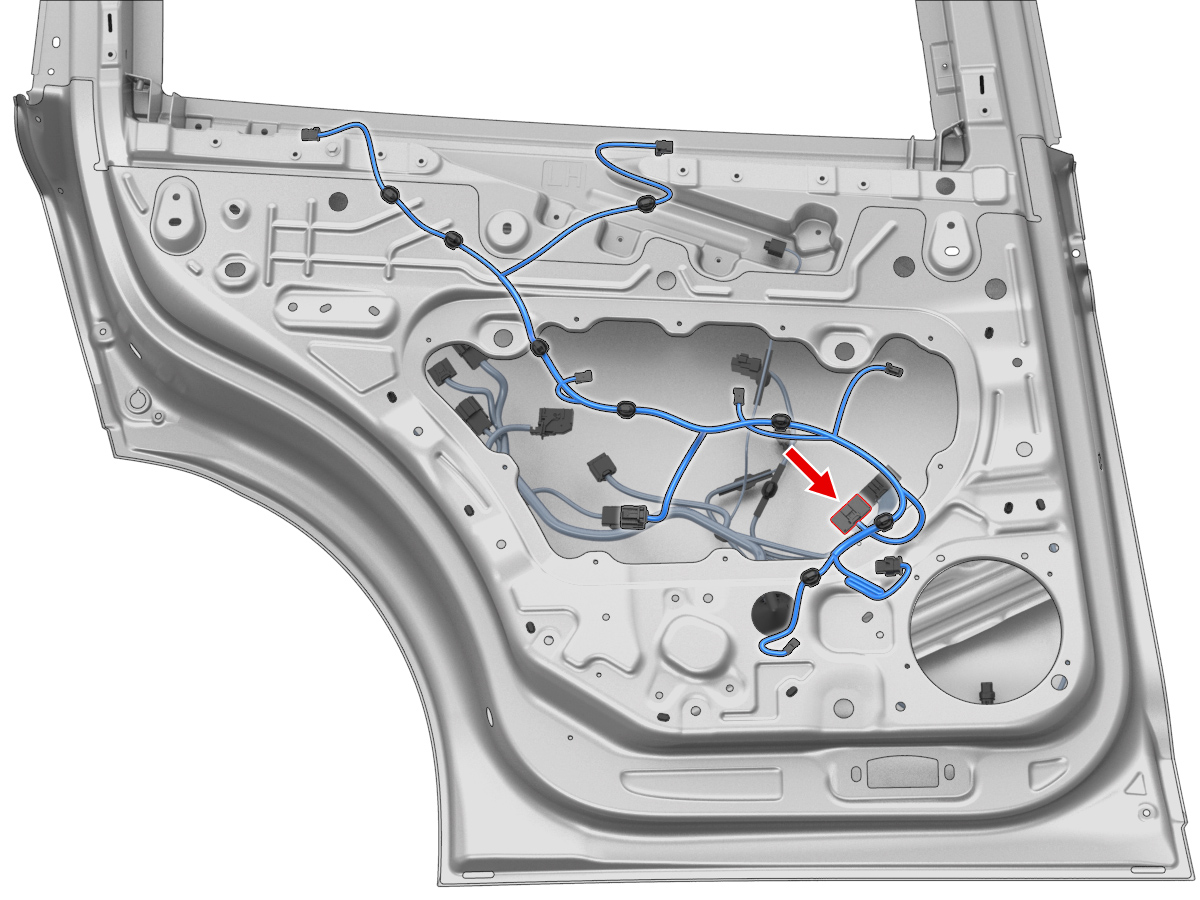

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X431	1
3	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X430	1
4	unused
5	unused
6	unused
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X448	2
9	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X448	1
10	unused
11	unused
12	unused
13	unused
14	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X431	2
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X430	2
17	unused
18	unused
19	unused
20	unused
21	unused
22	unused
23	unused
24	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X448	3
25	unused
26	unused
27	unused
28	unused
