X425

Tesla Part Number
1029203-00-B
Connector
MOLEX 33482-4001
Color
BK

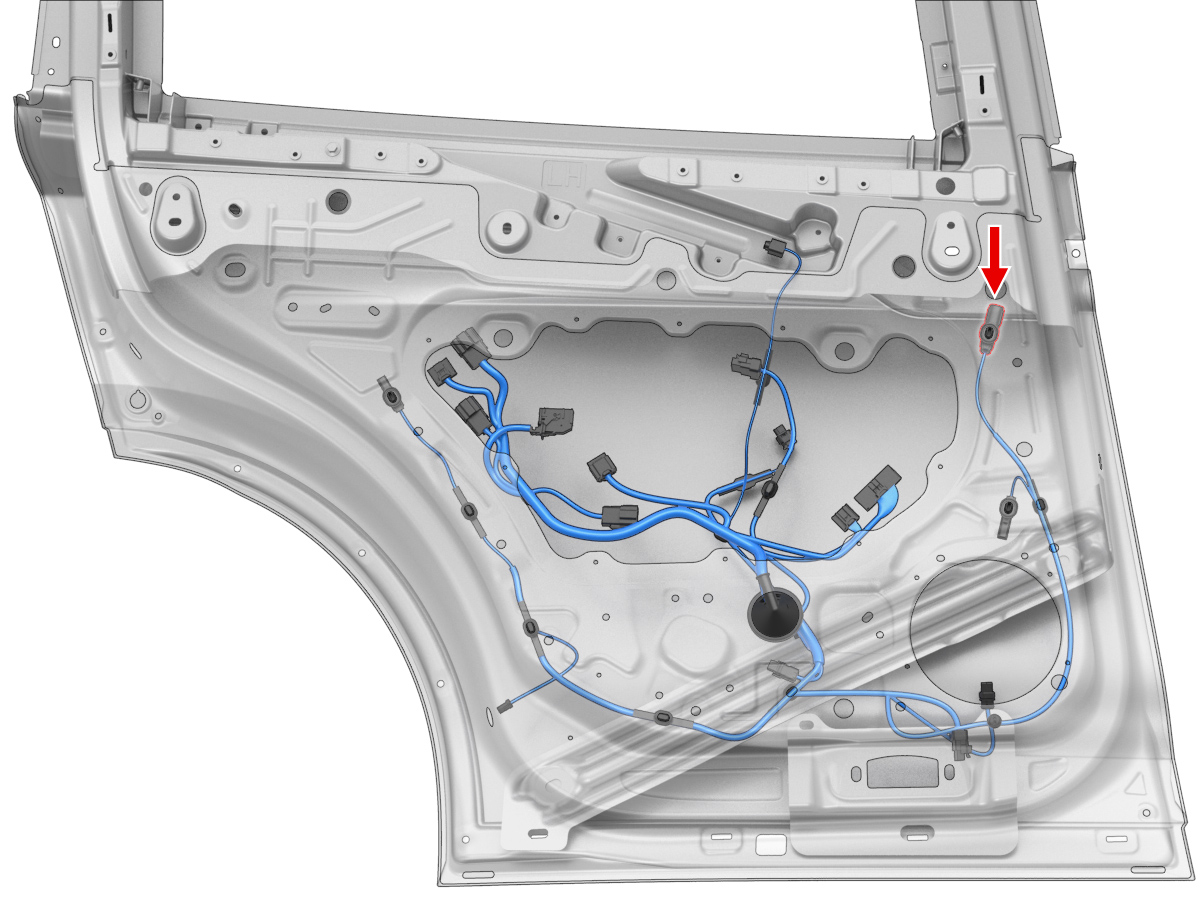

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX33000-00041.5x0.8MWH0.35TESLAMAT-120-240X42130
2MOLEX33000-00041.5x0.8MBN0.35TESLAMAT-120-240X42135
3unused
4unused
