X437

Tesla Part Number

1042620-02-A

Connector

SUMITOMO 6098-5620

Color

BU

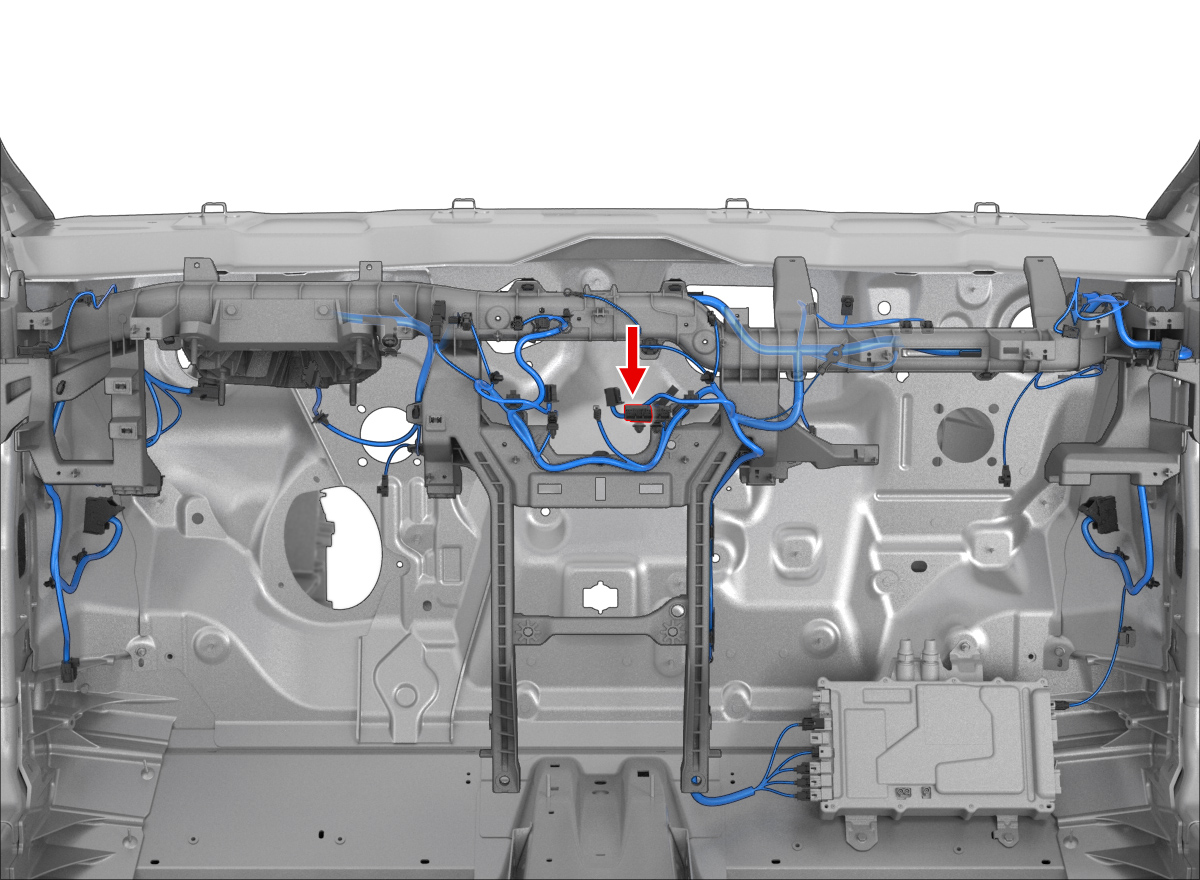

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X035	9
2	unused
3	unused
4	SUMITOMO	8100-3623	0.64x0.64M	VT/WH	0.35			X055	12
5	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X055	11
6	unused
7	SUMITOMO	8100-3623	0.64x0.64M	GY/WH	0.35			X035	21
8	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X035	6
9	SUMITOMO	8100-3623	0.64x0.64M	BN/WH	0.35			X035	44
10	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X035	29
11	unused
12	unused
13	SUMITOMO	8100-3623	0.64x0.64M	GN/WH	0.35			X947F	5
14	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X947F	6
15	unused
16	unused
17	unused
18	SUMITOMO	8100-3623	0.64x0.64M	BU/WH	0.35			X055	14
19	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X055	30
20	SUMITOMO	8230-4925	1.5x0.6M	BN	0.50
