X438

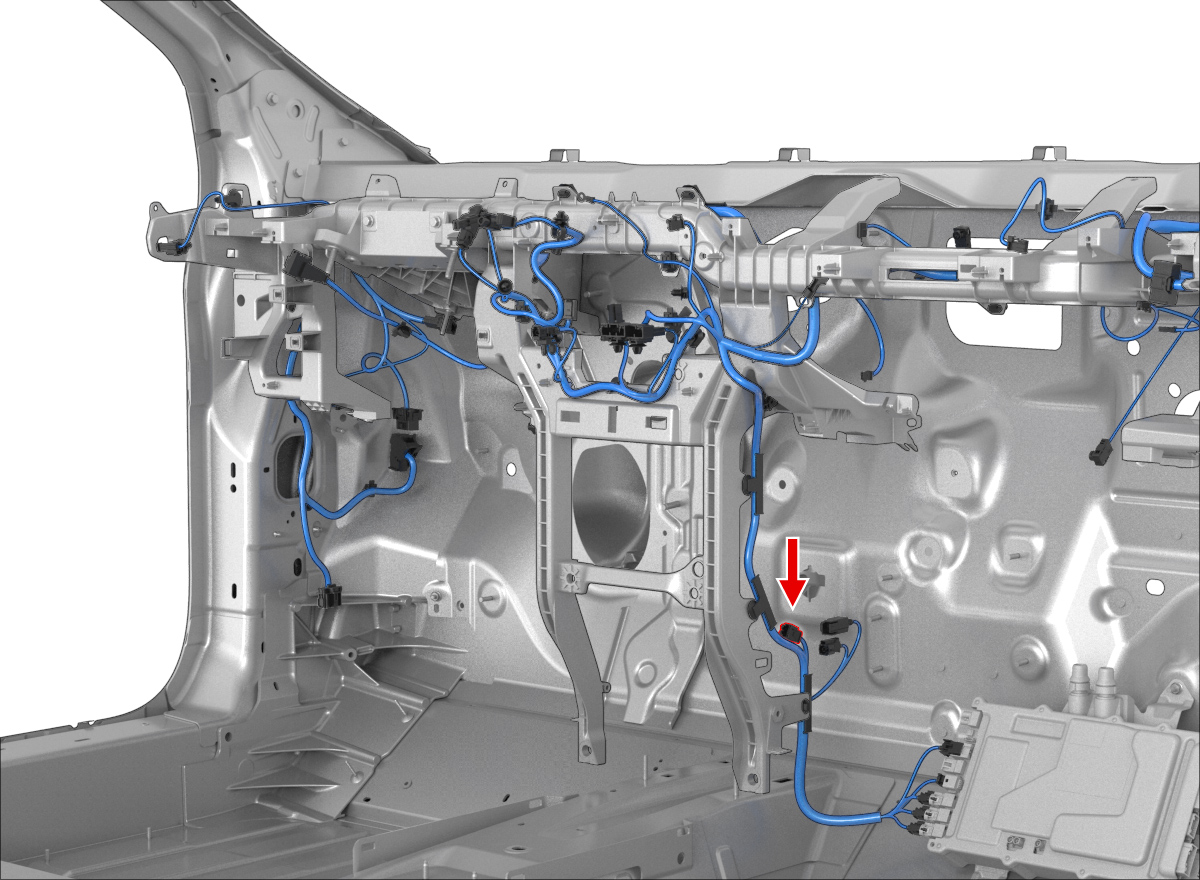

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 6-928918-1 | 0.63x0.63M | YE/WH | 0.35 | X035 | 27 | ||
| 2 | AMP | 6-928918-1 | 0.63x0.63M | YE | 0.35 | X035 | 26 | ||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
