X442

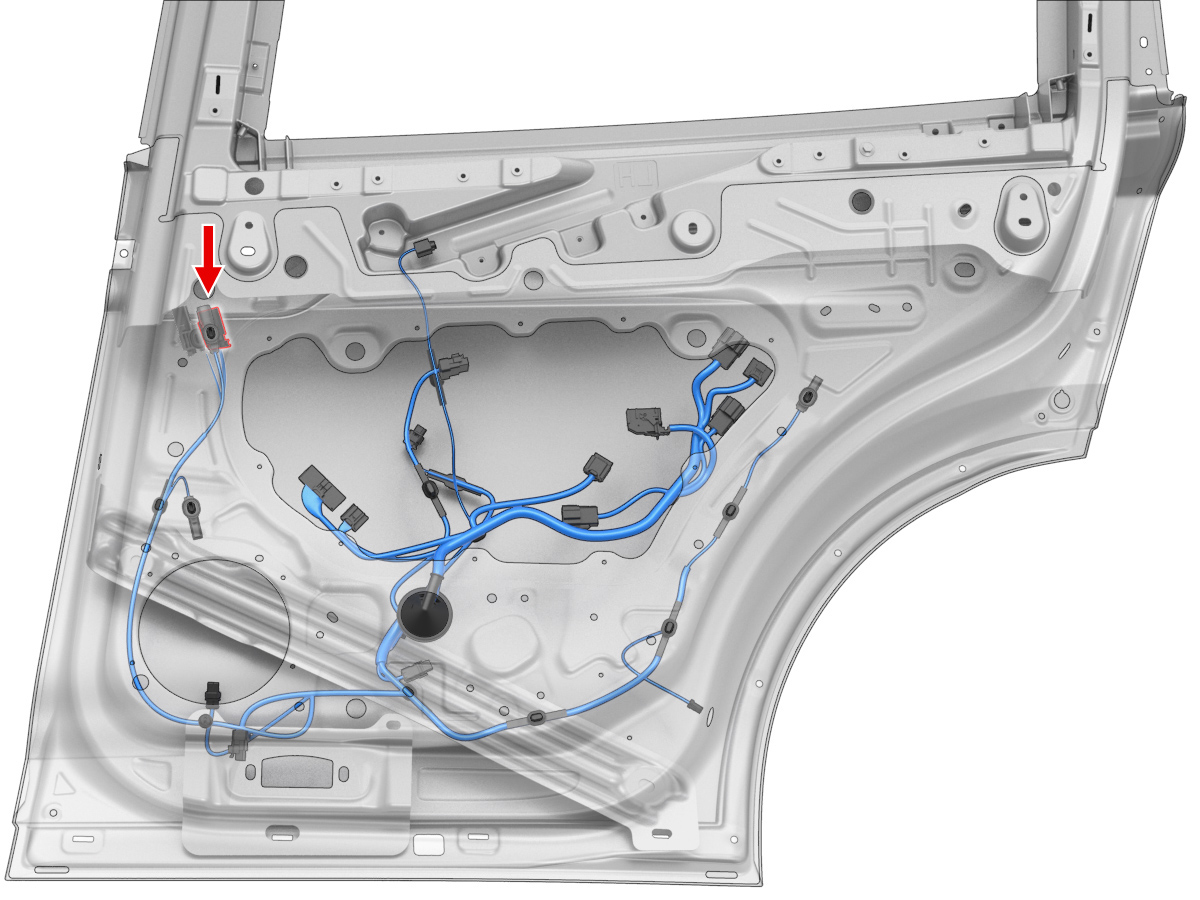

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1718758-1 | 1.2X0.6MS | YE | 0.35 | AMP | 967067-2 | X972L | 14 |
| 2 | AMP | 1718758-1 | 1.2X0.6MS | BN | 0.35 | AMP | 967067-2 | X972L | 21 |
| 3 | AMP | 1718758-1 | 1.2X0.6MS | GY/WH | 0.35 | AMP | 967067-2 | X972L | 5 |
| 4 | AMP | 1718758-1 | 1.2X0.6MS | GY | 0.35 | AMP | 967067-2 | X972L | 16 |
