X447

Tesla Part Number

1812206-00-A

Connector

DELPHI 15533303

Color

BK

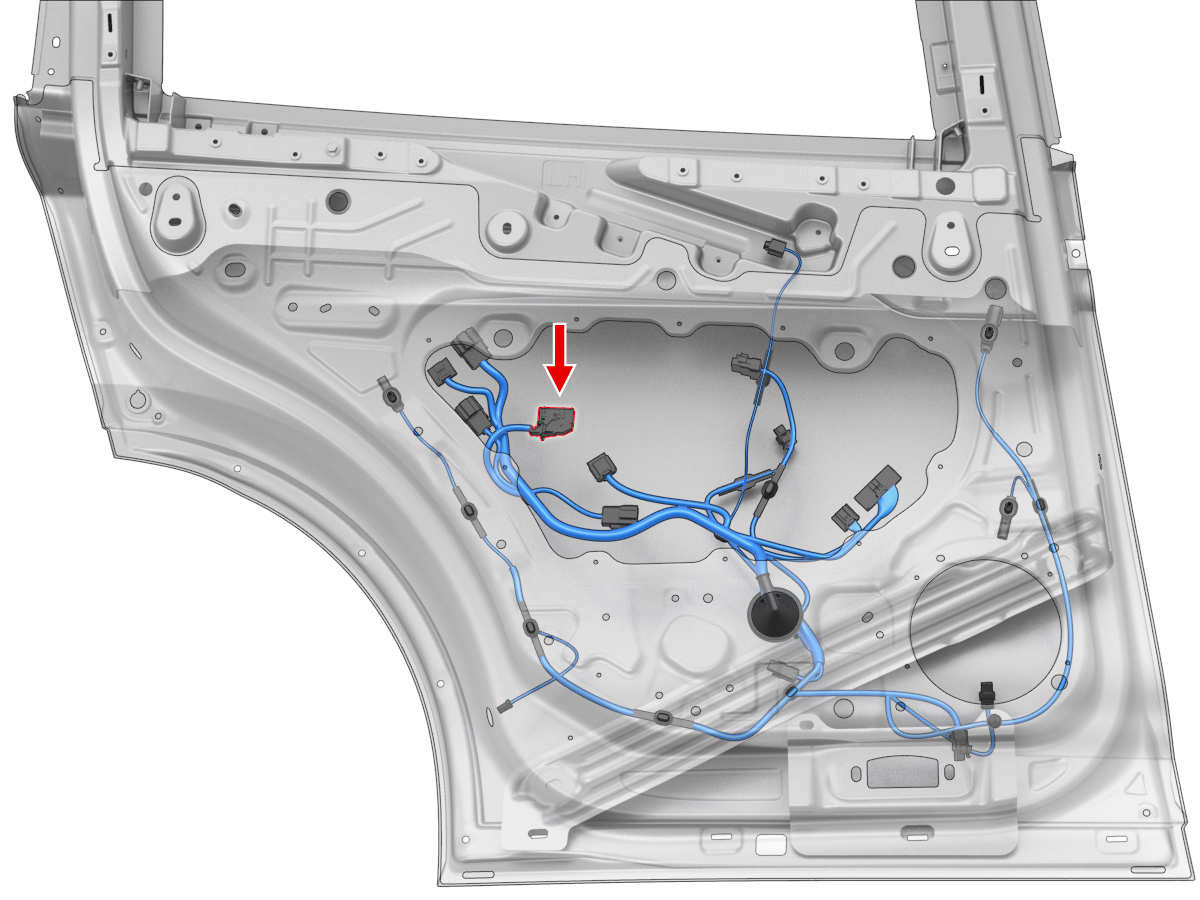

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	unused
4	unused
5	unused
6	DELPHI	13580633	0.64x0.64F	RD	0.35			X421	18
7	DELPHI	13580633	0.64x0.64F	VT	0.35			X973M	12
8	DELPHI	13580633	0.64x0.64F	GN	0.35			X973M	13
9	unused
10	DELPHI	13580633	0.64x0.64F	BU	0.35			X973M	11
11	DELPHI	13580633	0.64x0.64F	BU/WH	0.35			X973M	10
12	unused
13	DELPHI	13580635	0.64x0.64F	BK	0.50			X781	7
14	DELPHI	13580635	0.64x0.64F	RD	0.50			X423	6
15	unused
16	unused
17	unused
18	DELPHI	13580633	0.64x0.64F	YE	0.35			X972L	12
19	DELPHI	13580633	0.64x0.64F	GN	0.35			X421	26
20	DELPHI	13580633	0.64x0.64F	TN	0.35			X973M	14
21	unused
22	DELPHI	13580633	0.64x0.64F	BN	0.35			X972L	19
23	DELPHI	13580633	0.64x0.64F	GY	0.35			X972L	17
24	DELPHI	13580633	0.64x0.64F	GY/WH	0.35			X972L	6
25	unused
26	unused
