X457

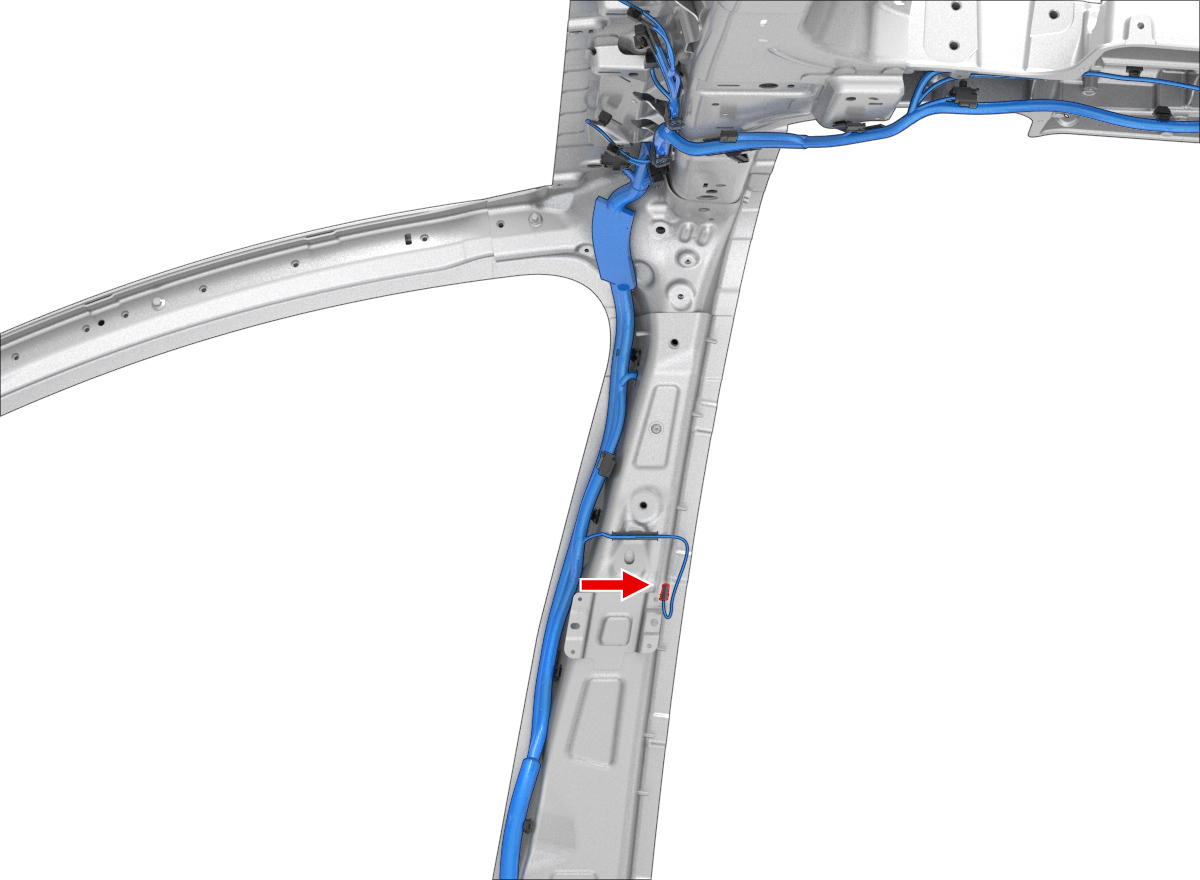

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-928999-1 | 0.63x0.63F | GY | 0.35 | X052 | 31 | ||
| 2 | AMP | 5-928999-1 | 0.63x0.63F | RD | 0.35 | X052 | 26 | ||
| 3 | AMP | 5-928999-1 | 0.63x0.63F | BU | 0.35 | X060B | 2 | ||
| 4 | AMP | 5-928999-1 | 0.63x0.63F | BK | 0.35 | G350 | 1 |
