X482

Tesla Part Number
1064057-00-A
Connector
HIRSCHMANN 872-858-546
Color
CR

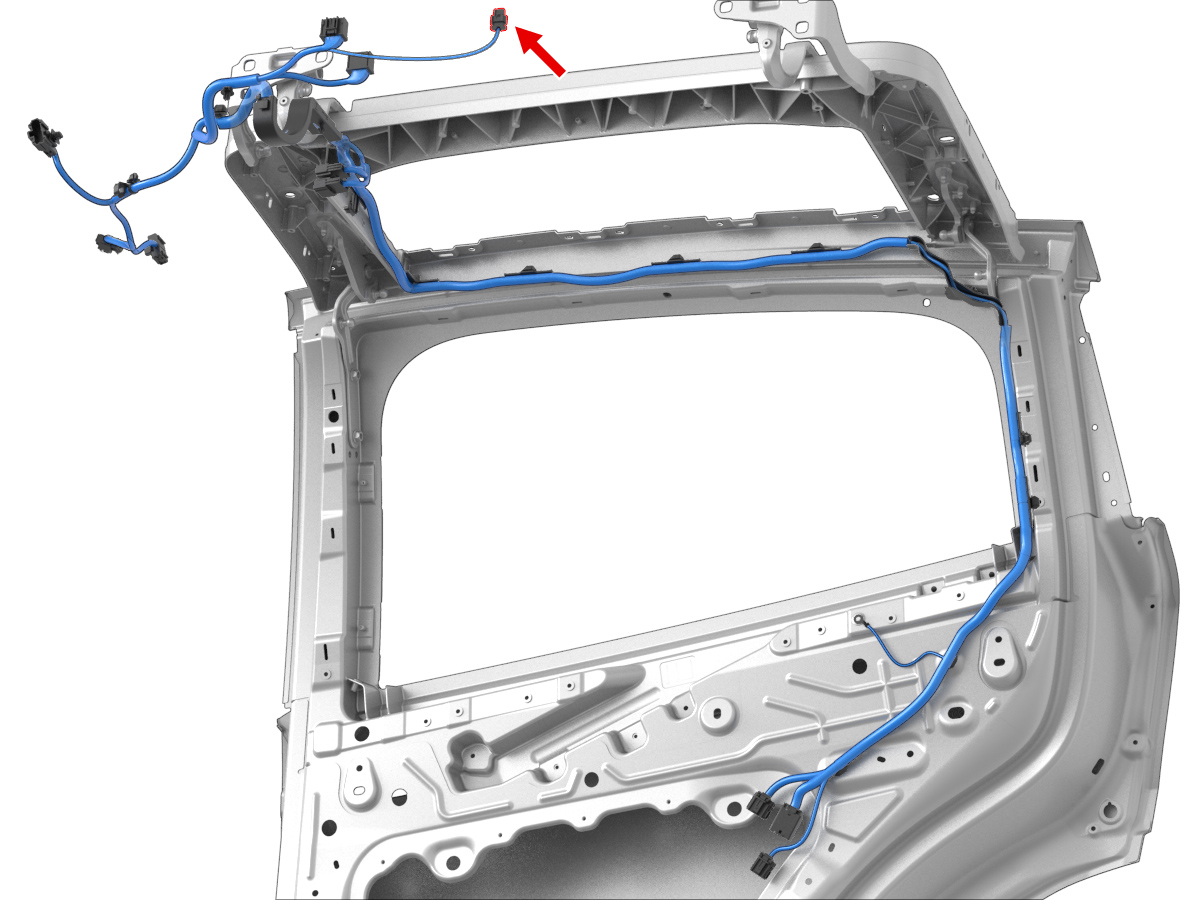

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP7-1452665-11.2x0.6FSYE0.35AMP967067-2X974U22
2AMP7-1452665-11.2x0.6FSTN0.35AMP967067-2X985F6
3AMP7-1452665-11.2x0.6FSBN0.35AMP967067-2X974U13
