X507

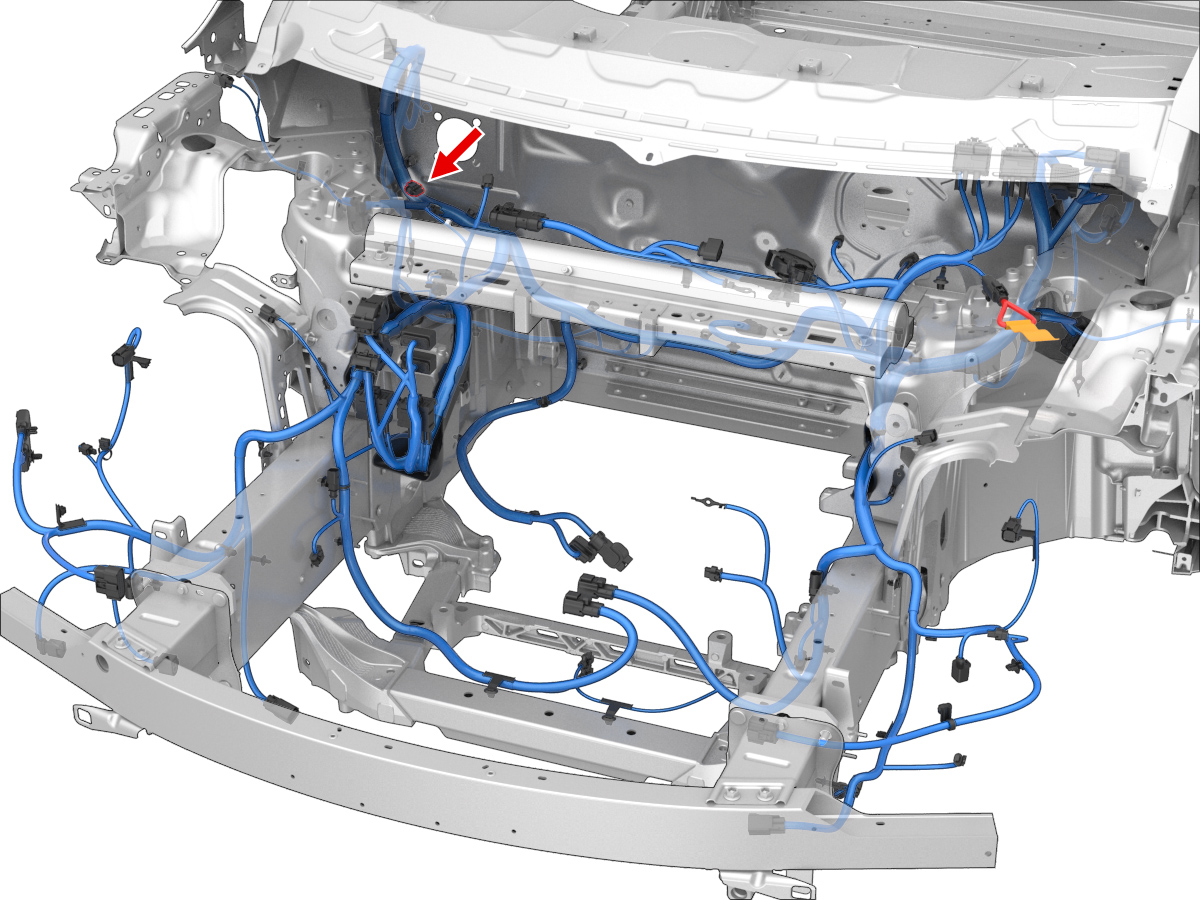

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452671-1 | 1.2x0.6FS | GN | 1.00 | AMP | 967067-1 | X025 | L3 |
| 2 | AMP | 7-1452671-1 | 1.2x0.6FS | WH | 1.00 | AMP | 967067-1 | X025 | L2 |
| 3 | AMP | 7-1452671-1 | 1.2x0.6FS | VT | 1.00 | AMP | 967067-1 | X025 | L1 |
| 4 | AMP | 7-1452665-1 | 1.2x0.6FS | BK | 0.35 | AMP | 967067-2 |
