X523

Tesla Part Number
1106842-00-A
Connector
MOLEX 98193-0001
Color
BK

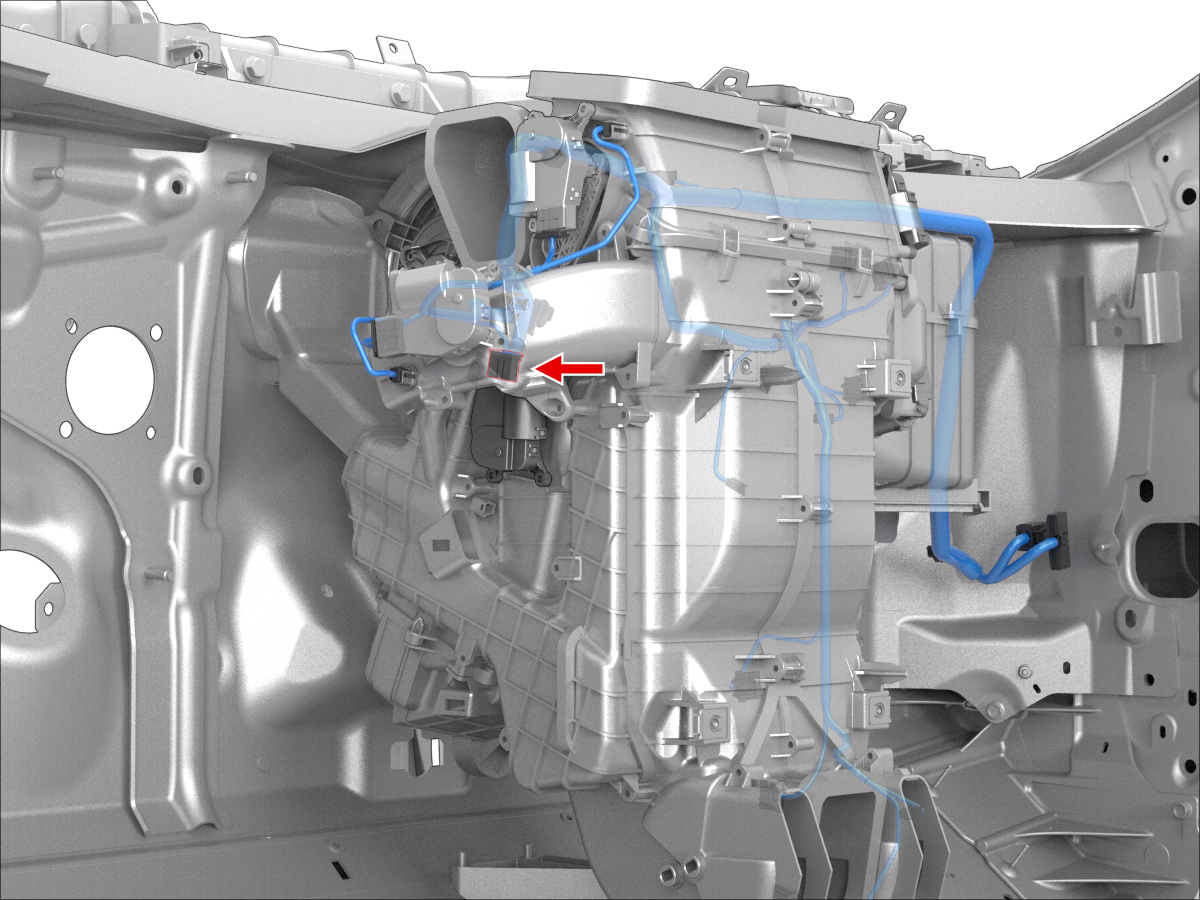

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1MOLEX09865812110.64x0.64FBK0.35
2MOLEX09865812110.64x0.64FBK/GN0.35X05832
3MOLEX09865812110.64x0.64FRD0.35
4unused
5MOLEX09865812110.64x0.64FRD/BN0.35X05824
6MOLEX09865812110.64x0.64FGY/YE0.35X0586
