X543

Tesla Part Number
1058533-00-A
Connector
AMP 2-967642-1
Color
GY

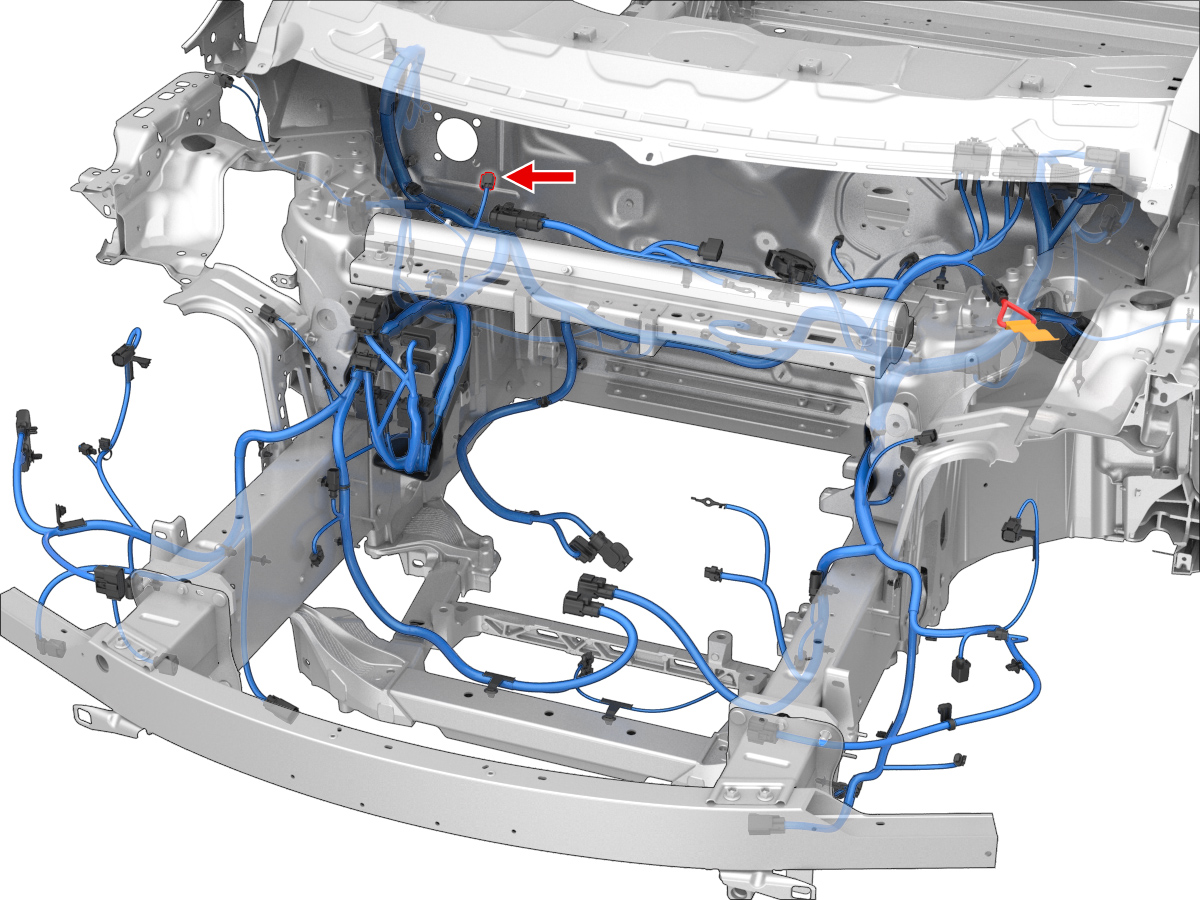

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-962885-10.63x0.63FSRD0.35AMP967067-2X025F5
2AMP5-962885-10.63x0.63FSBK0.35AMP967067-2G1604
3AMP5-962885-10.63x0.63FSTN0.35AMP967067-2X025J2
