X560

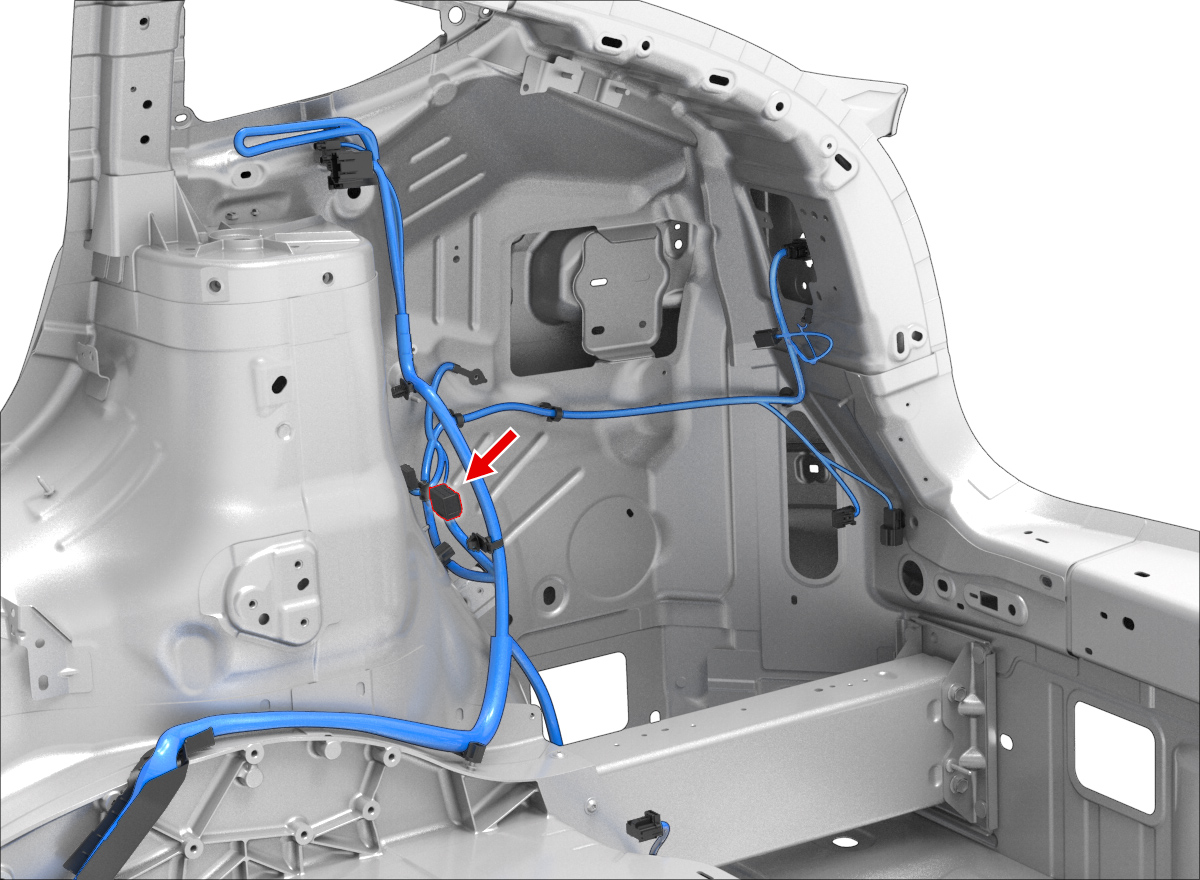

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4272-02 | 2.8x0.8F | WH | 1.50 | X923M | 6 | ||
| 2 | YAZAKI | 7116-4272-02 | 2.8x0.8F | YE | 1.50 | X923M | 3 | ||
| 3 | YAZAKI | 7116-4272-02 | 2.8x0.8F | VT | 1.50 | X600 | 2 | ||
| 4 | YAZAKI | 7116-4272-02 | 2.8x0.8F | RD | 1.50 | X600 | 3 | ||
| 5 | YAZAKI | 7116-4113-02 | 2.8x0.8F | BK | 3 | G390 | 1 | ||
| 6 | YAZAKI | 7116-4113-02 | 2.8x0.8F | WH | 3 | X054 | 5 | ||
| 7 | YAZAKI | 7116-4272-02 | 2.8x0.8F | GN | 1.50 | X988F | 20 | ||
| 8 | YAZAKI | 7116-4272-02 | 2.8x0.8F | BN | 1.50 | X988F | 10 | ||
| 9 | YAZAKI | 7116-4272-02 | 2.8x0.8F | BU | 1.50 | X600 | 1 | ||
| 10 | YAZAKI | 7116-4272-02 | 2.8x0.8F | GY | 1.50 | X600 | 4 | ||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
