X570

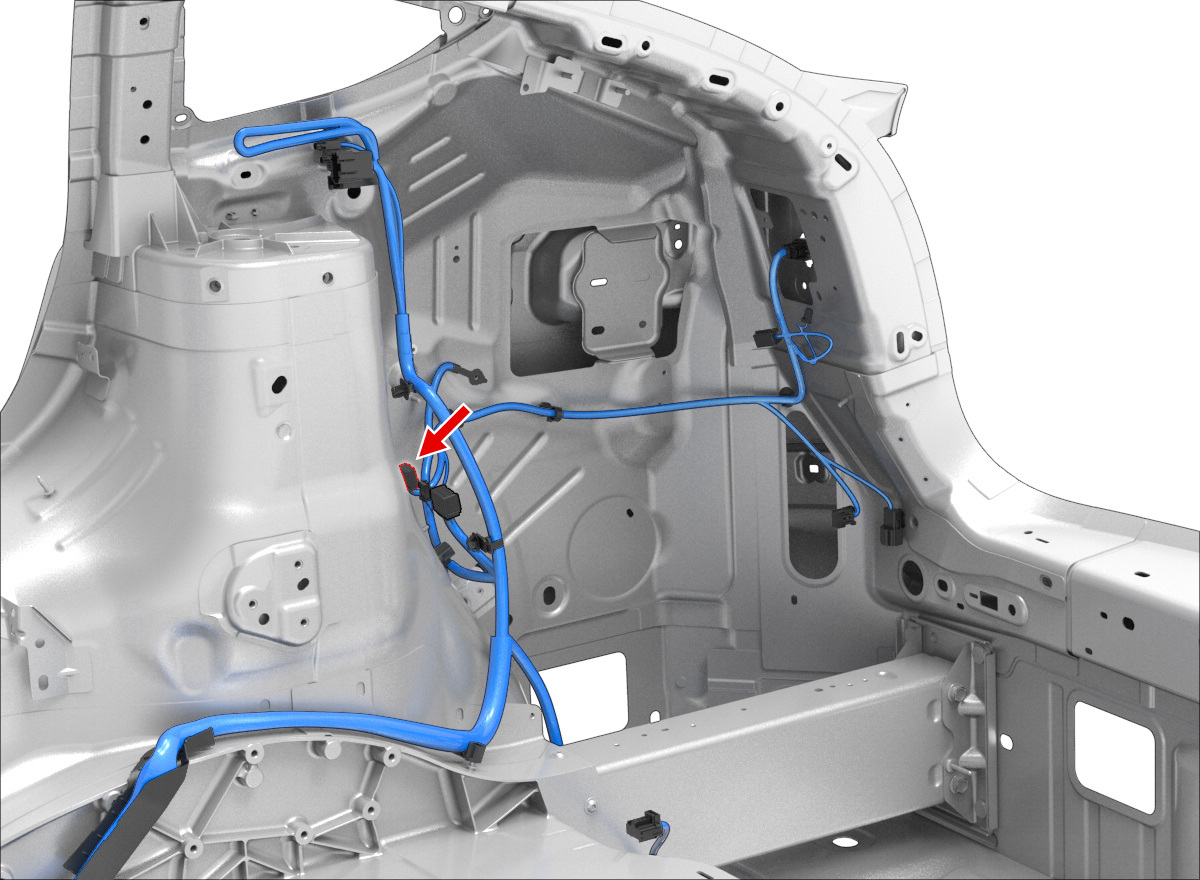

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0214 | 1.5x0.64F | WH | 2.00 | X978M | 20 | ||
| 2 | SUMITOMO | 8240-0214 | 1.5x0.64F | BU | 2.00 | X978M | 11 | ||
| 3 | SUMITOMO | 8240-0214 | 1.5x0.64F | BU/YE | 2.00 | X978M | 1 | ||
| 4 | SUMITOMO | 8240-0214 | 1.5x0.64F | WH/YE | 2.00 | X978M | 12 | ||
| 5 | SUMITOMO | 8240-0214 | 1.5x0.64F | YE | 1.50 | X954M | 9 | ||
| 6 | SUMITOMO | 8240-0214 | 1.5x0.64F | BU | 1.50 | X954M | 1 | ||
| 7 | unused | ||||||||
| 8 | unused | ||||||||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | SUMITOMO | 8240-0214 | 1.5x0.64F | GN | 1.50 | X954M | 16 | ||
| 12 | SUMITOMO | 8240-0214 | 1.5x0.64F | VT | 1.50 | X954M | 8 | ||
