X586

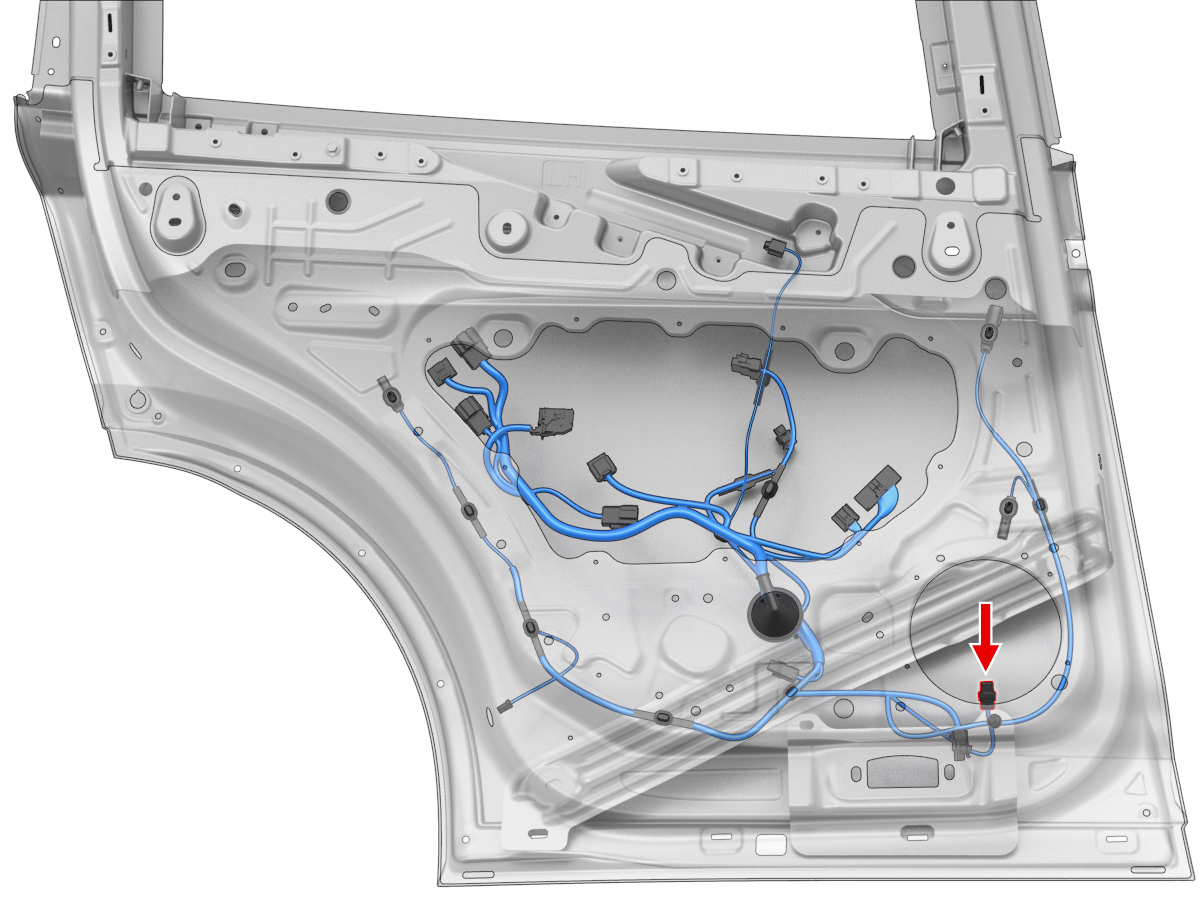

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 282466-1 | 1.5x0.8FS | BU | 2.00 | X781 | 2 | ||
| 2 | AMP | 282466-1 | 1.5x0.8FS | WH | 2.00 | X781 | 5 |
