X596

Tesla Part Number
1666680-00-A
Connector
AMPHENOL 10142348-007LF
Color
BK

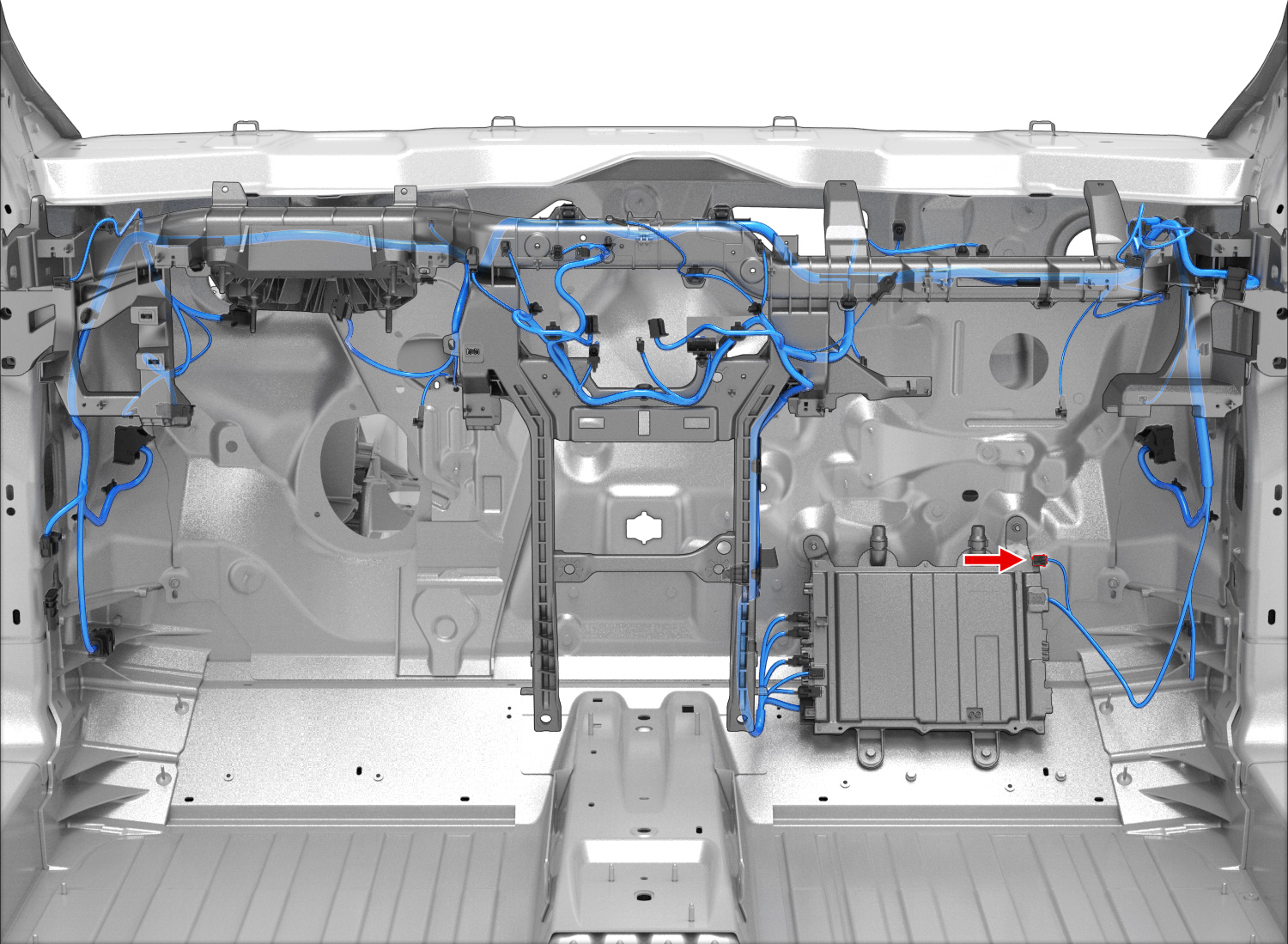

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMPHENOL10141272-111 LF0.50FGN0.35X1772
2AMPHENOL10141272-111 LF0.50FYE/WH0.35X1771
3unused
4AMPHENOL10141272-111 LF0.50FWH0.35X947F20
5AMPHENOL10141272-111 LF0.50FGN/WH0.35X1774
6AMPHENOL10141272-111 LF0.50FYE0.35X1773
7AMPHENOL10141272-111 LF0.50FGN0.35X947F19
