X605

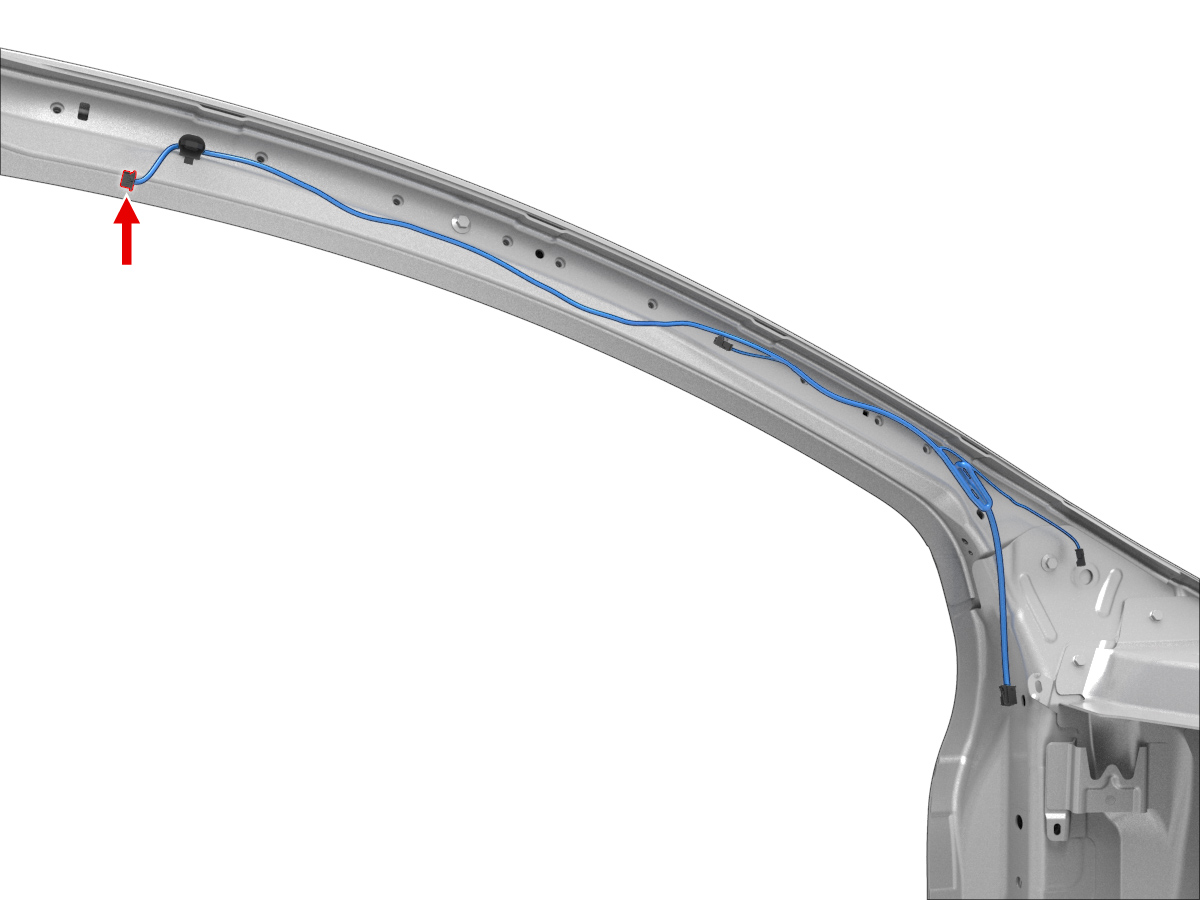

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 560124-0101 | 0.5F | GN | 0.35 | X940F | 5 | ||
| 2 | MOLEX | 560124-0101 | 0.5F | BU | 0.35 | X940F | 4 | ||
| 3 | MOLEX | 560124-0101 | 0.5F | BK | 0.35 | X940F | 8 | ||
| 4 | MOLEX | 560124-0101 | 0.5F | YE | 0.35 | X940F | 10 | ||
| 5 | MOLEX | 560124-0101 | 0.5F | WH | 0.35 | X940F | 9 |
