X612

Tesla Part Number
1047679-00-A
Connector
AMP 1-1456426-6
Color
BN

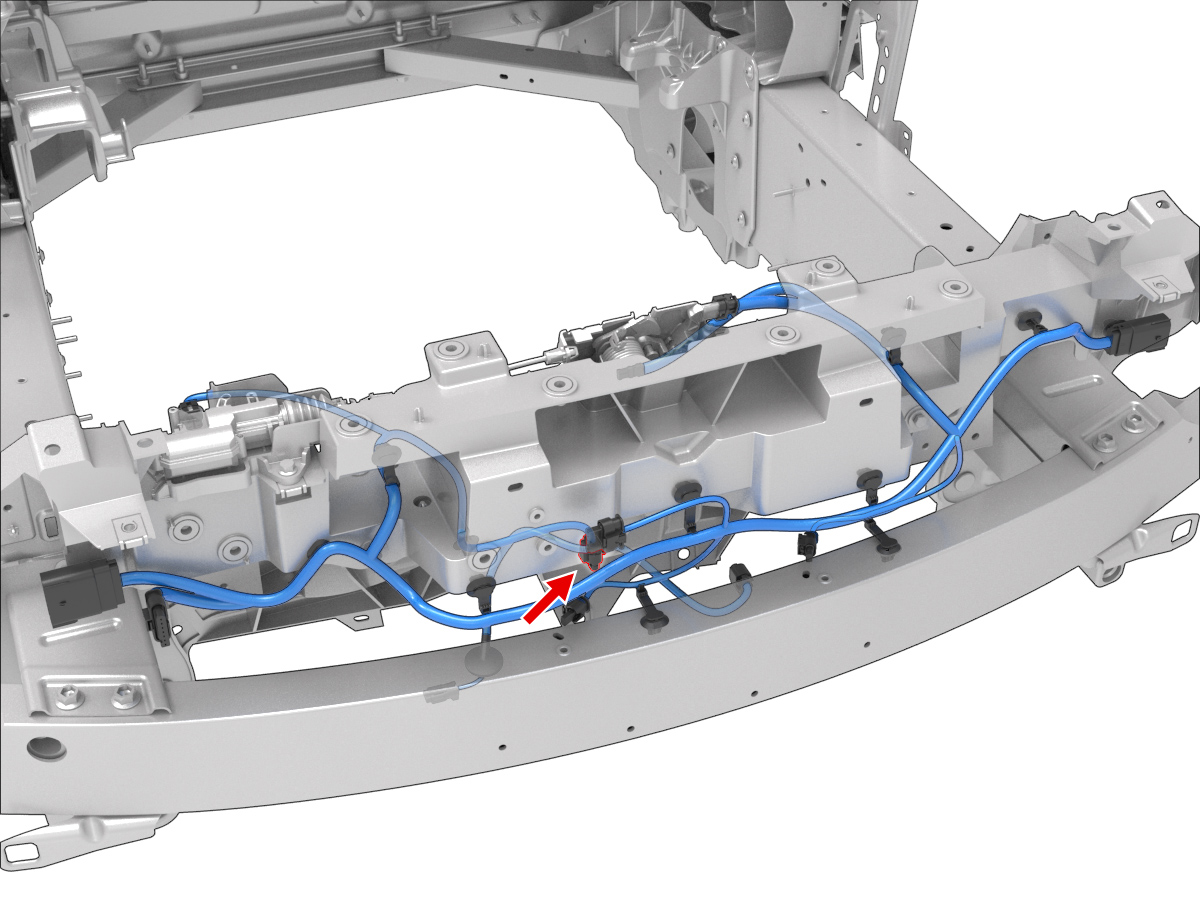

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP1418844-11.2x0.6FSBK0.35AMP967067-2
2AMP1418844-11.2x0.6FSGN0.35AMP967067-2X906M13
3AMP1418844-11.2x0.6FSGY0.35AMP967067-2X906M12
4AMP1418844-11.2x0.6FSYE0.35AMP967067-2X906M11
