X620

Tesla Part Number

1090319-00-A

Connector

AMP 1-1718806-1

Color

BK

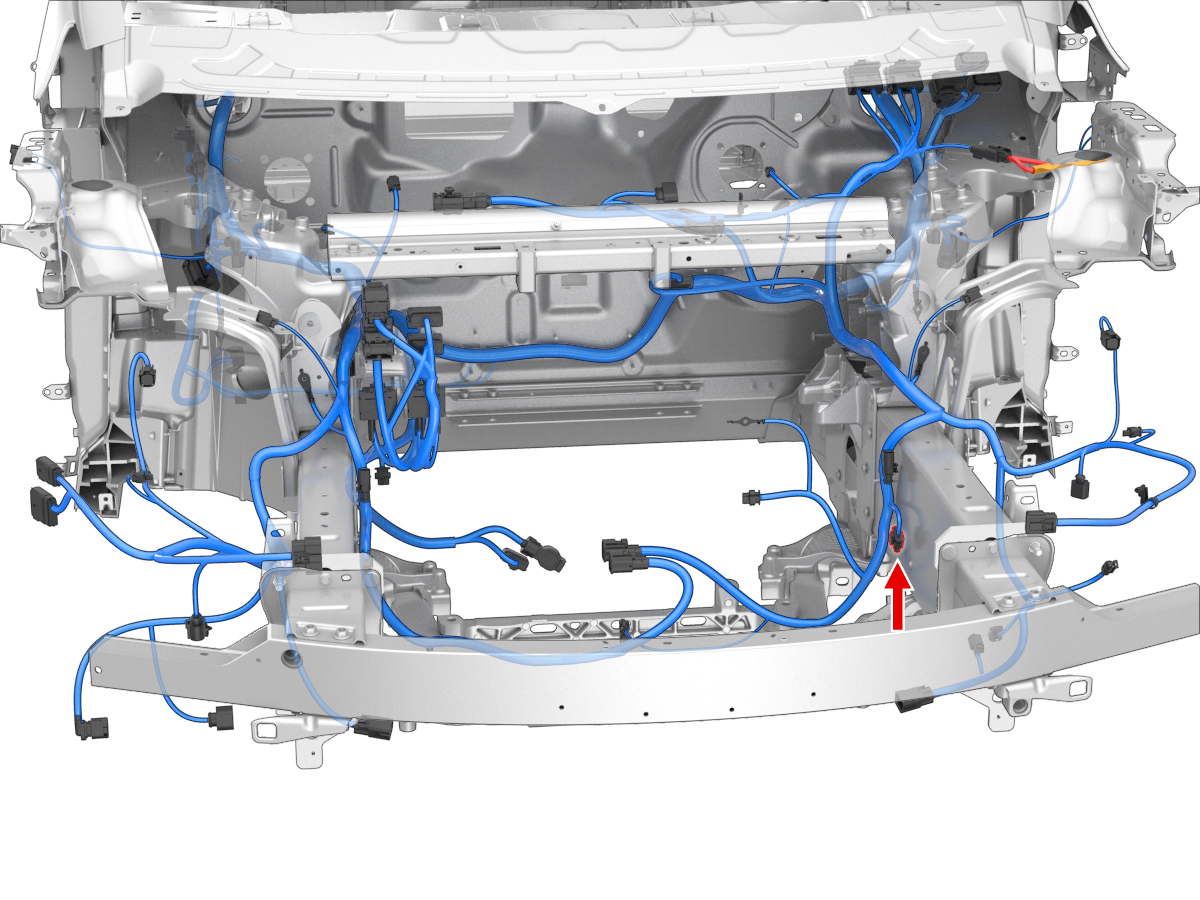

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	7-1452665-1	1.2x0.6FS	GY	0.35	AMP	967067-2	X913M	13
2	AMP	7-1452665-1	1.2x0.6FS	YE	0.35	AMP	967067-2	X913M	12
3	unused
4	AMP	7-1452665-1	1.2x0.6FS	VT	0.35	AMP	967067-2	X621	2
5	AMP	7-1452665-1	1.2x0.6FS	YE	0.35	AMP	967067-2	X621	1
