X628

Tesla Part Number

1047618-00-A

Connector

FCI 211PC042S4021

Color

BK

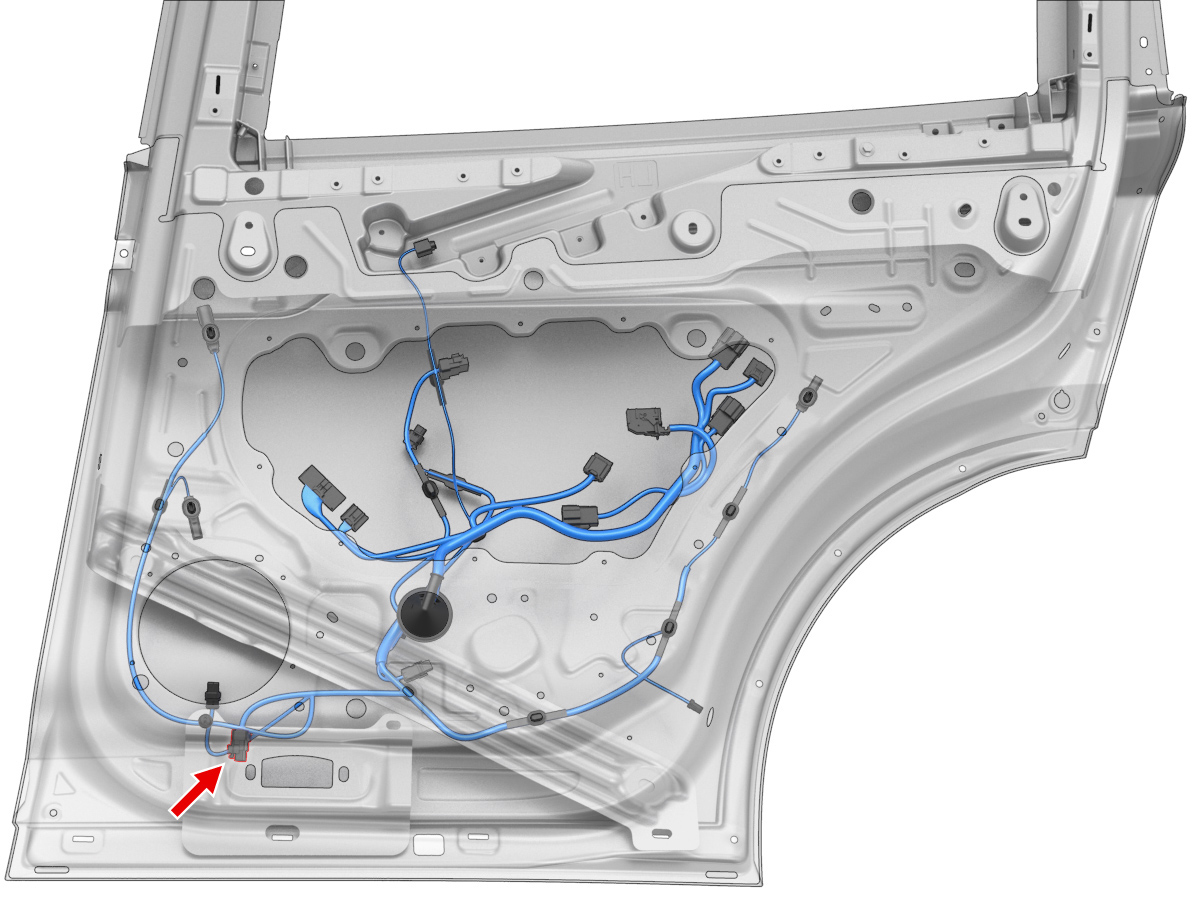

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	FCI	211CC2S1160P	1.5x0.8F	BU	0.50	TESLA	MAT-140-280	X451	15
2	FCI	211CC2S1160P	1.5x0.8F	BK	0.50	TESLA	MAT-140-280	X784	11
3	FCI	211CC2S1160P	1.5x0.8F	YE	0.50	TESLA	MAT-140-280	X451	9
4	FCI	211CC2S1160P	1.5x0.8F	RD	0.50	TESLA	MAT-140-280	X451	8
