X672

Tesla Part Number

1062811-01-A

Connector

MOLEX 34969-0141

Color

GY

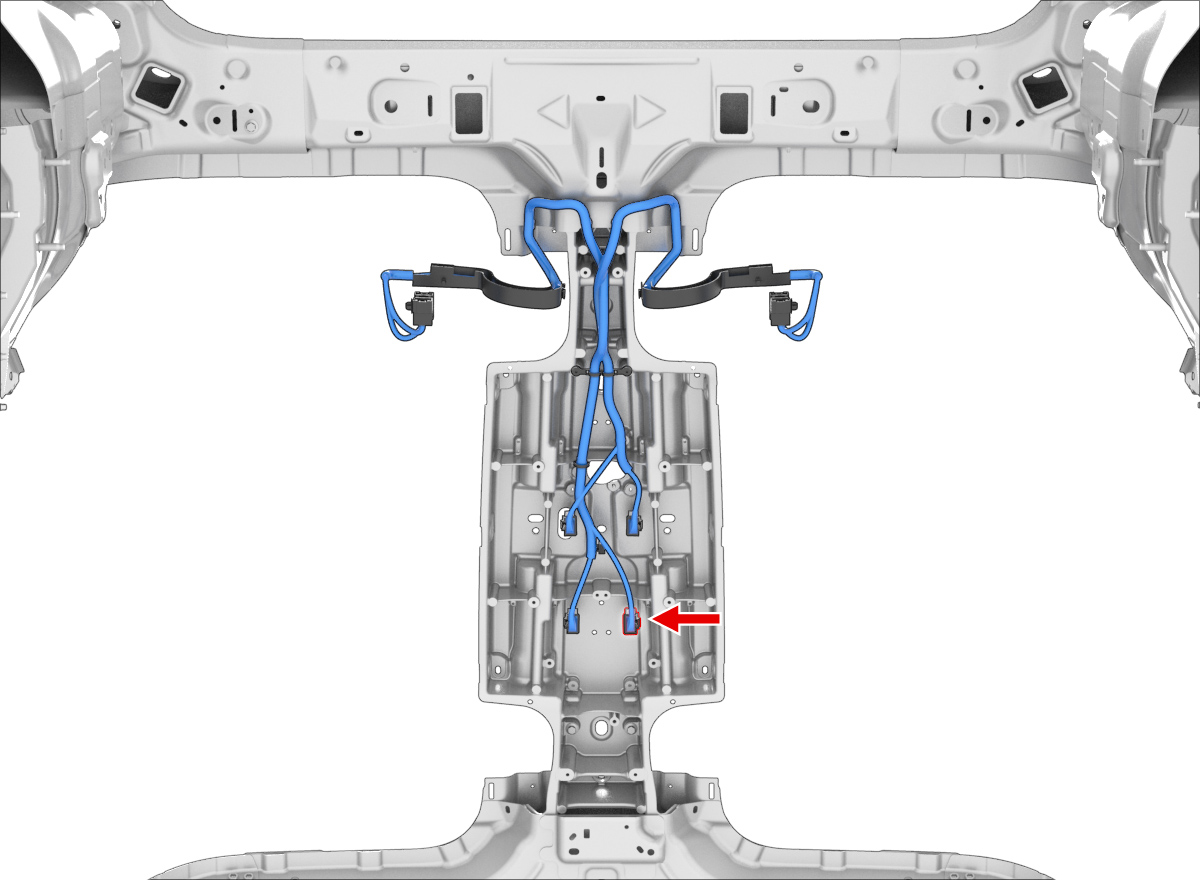

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	34803-3211	0.64x0.64F	GY	0.35			X692	2
2	MOLEX	34803-3211	0.64x0.64F	BK	0.35			X692	5
3	MOLEX	34803-3211	0.64x0.64F	RD	0.35			X692	3
4	MOLEX	34803-3211	0.64x0.64F	BU	0.35			X692	4
5	unused
6	MOLEX	34803-3211	0.64x0.64F	SI	0.35			X692	11
7	unused
8	unused
9	unused
10	unused
11	AMP	1326030-1	2.8x0.8F	SI	0.35			X692	8
12				RD	2.00			X692	1
13				BU	2.00			X692	6
14	unused
