X683

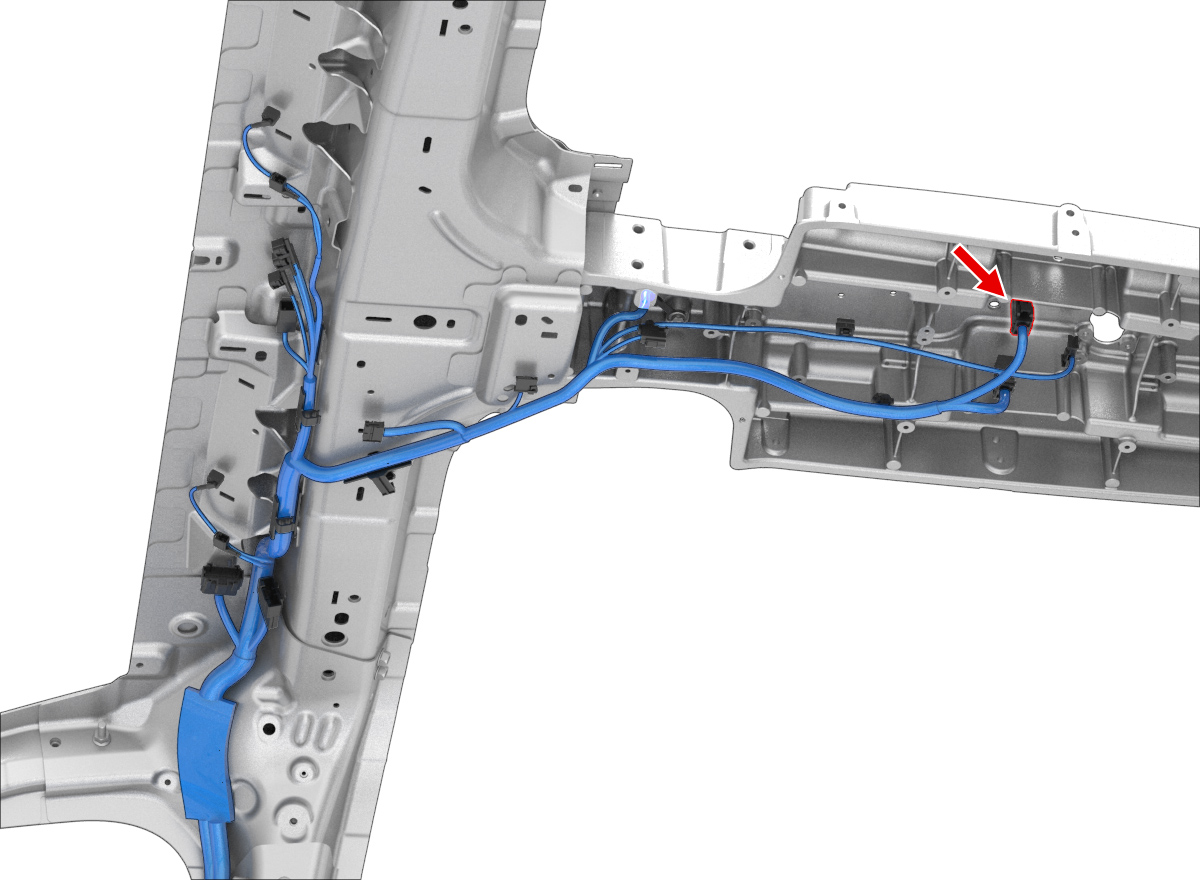

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| PLUS | YAZAKI | 7116-3285-02 | 9.5x1.2FS | RD/VT | 10.00 | ||||
| MINUS | YAZAKI | 7116-3250 | 9.5x1.2FS | BK | 6.00 | G360 | 1 |
