X685

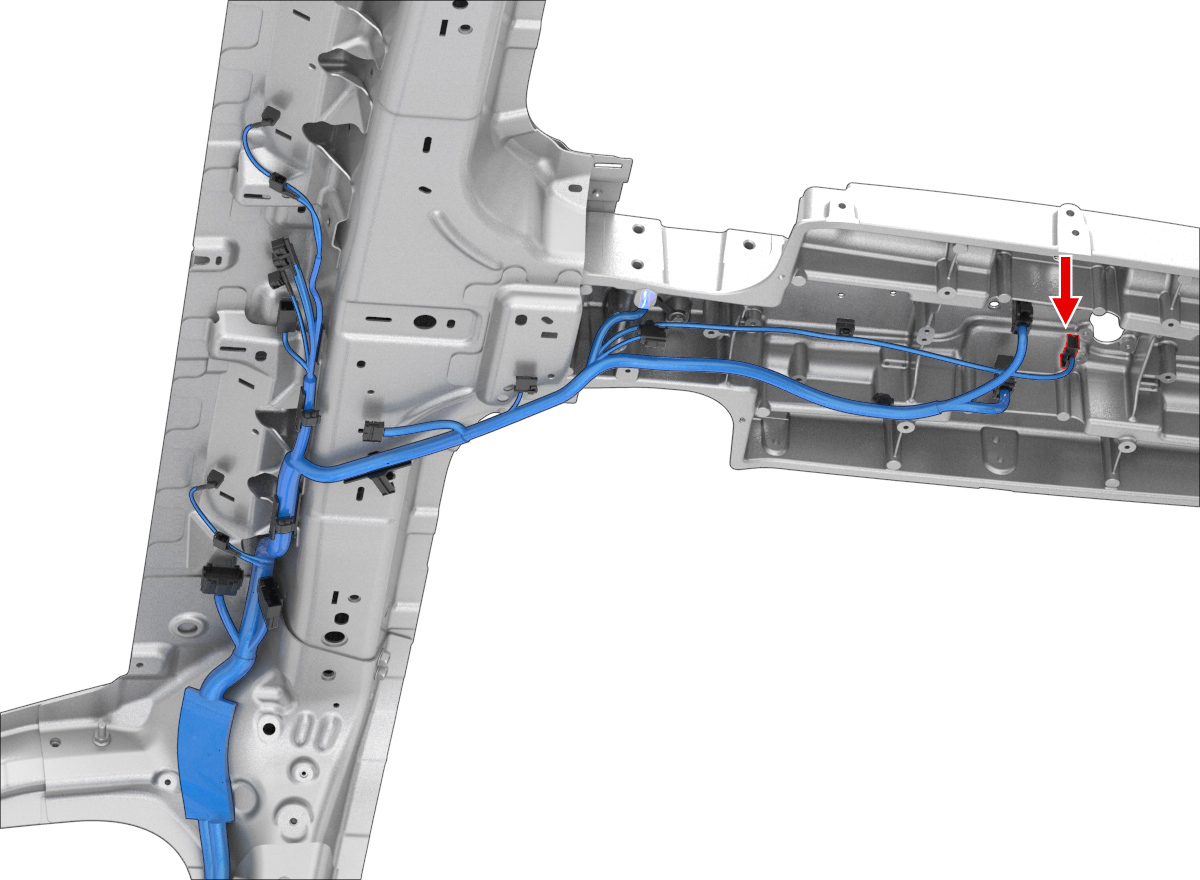

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | unused | ||||||||
| 3 | MOLEX | 560023-0448 | 0.50x0.4F | VT/WH | 0.35 | X792 | 7 | ||
| 4 | MOLEX | 560023-0448 | 0.50x0.4F | VT | 0.35 | X792 | 18 | ||
| 5 | unused | ||||||||
| 6 | MOLEX | 560023-0448 | 0.50x0.4F | GY | 0.35 | X792 | 20 | ||
| 7 | MOLEX | 560023-0448 | 0.50x0.4F | GY/WH | 0.35 | X792 | 9 | ||
| 8 | MOLEX | 560023-0448 | 0.50x0.4F | BK | 0.35 | G350 | 1 | ||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | unused | ||||||||
| 12 | MOLEX | 560023-0448 | 0.50x0.4F | GN | 0.35 | X978M | 7 | ||
| 13 | MOLEX | 560023-0448 | 0.50x0.4F | BU | 0.35 | X978M | 8 | ||
| 14 | unused | ||||||||
| 15 | unused | ||||||||
| 16 | unused | ||||||||
| 17 | unused | ||||||||
| 18 | unused | ||||||||
| 19 | unused | ||||||||
| 20 | unused | ||||||||
