X690

Tesla Part Number

1042592-01-A

Connector

SUMITOMO 6098-5707

Color

BK

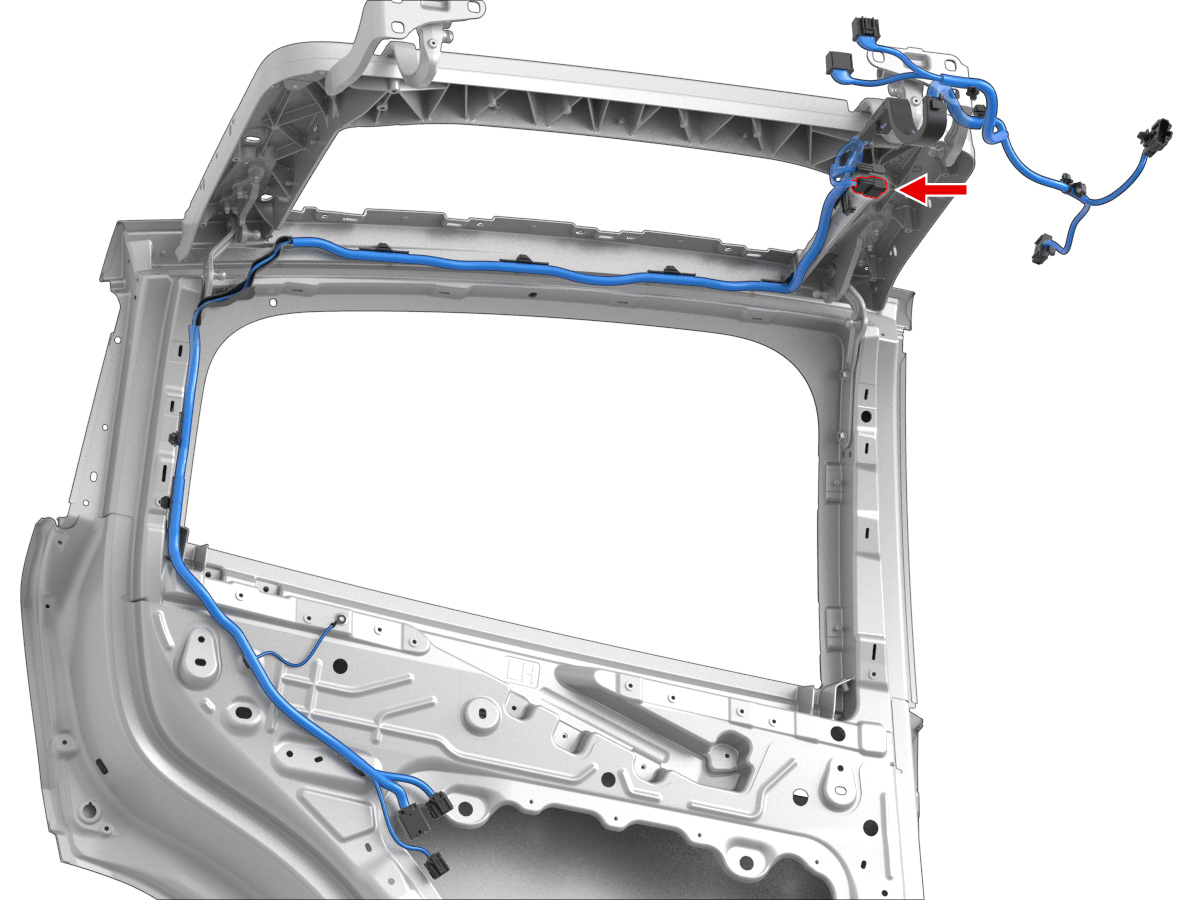

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	RD	2.00			X670	11
2	SUMITOMO	8230-4925	1.5x0.6M	GY	0.35			X670	10
3	SUMITOMO	8230-4925	1.5x0.6M	RD	0.35			X670	7
4	SUMITOMO	8230-4925	1.5x0.6M	BU	0.35			X670	8
5	SUMITOMO	8230-4925	1.5x0.6M	BK	0.35			X670	6
6	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X670	12
7	unused
8	SUMITOMO	8230-4925	1.5x0.6M	SI	0.35			X670	14
9	unused
10	unused
11	SUMITOMO	8230-4925	1.5x0.6M	SI	0.35			X670	5
12	unused
