X791

Tesla Part Number

1042593-03-A

Connector

SUMITOMO 6098-5718

Color

GY

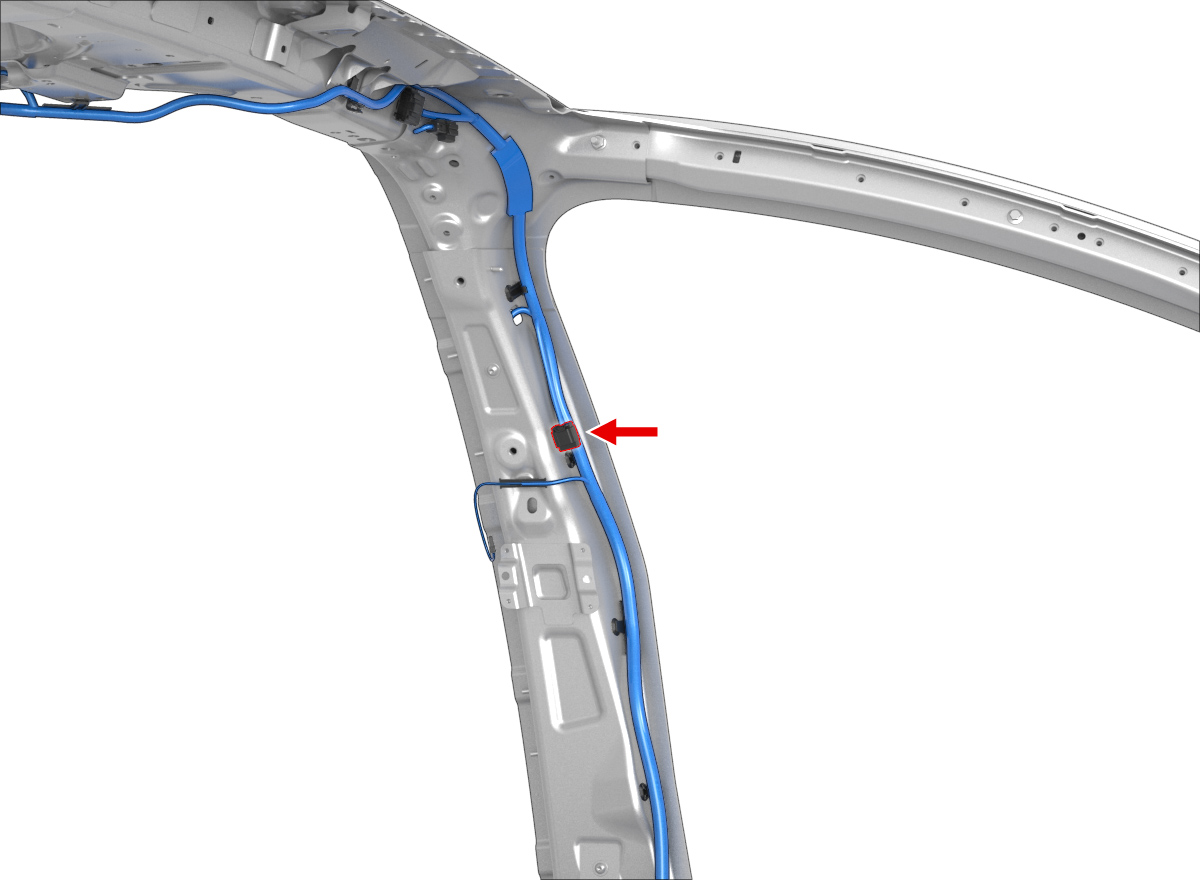

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	VT/WH	0.35
2	SUMITOMO	8240-0215	1.5x0.64F	VT/WH	0.35			X684	3
3	SUMITOMO	8240-0215	1.5x0.64F	VT/WH	0.35			X970M	4
4	SUMITOMO	8240-0215	1.5x0.64F	GY/WH	0.35			X039	10
5	SUMITOMO	8240-0215	1.5x0.64F	GY/WH	0.35			X684	7
6	SUMITOMO	8240-0215	1.5x0.64F	GY/WH	0.35			X970M	17
7	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35
8	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X684	4
9	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X970M	5
10	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X039	9
11	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X684	6
12	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X970M	18
