X792

Tesla Part Number

1042583-02-A

Connector

SUMITOMO 6098-3927

Color

BU

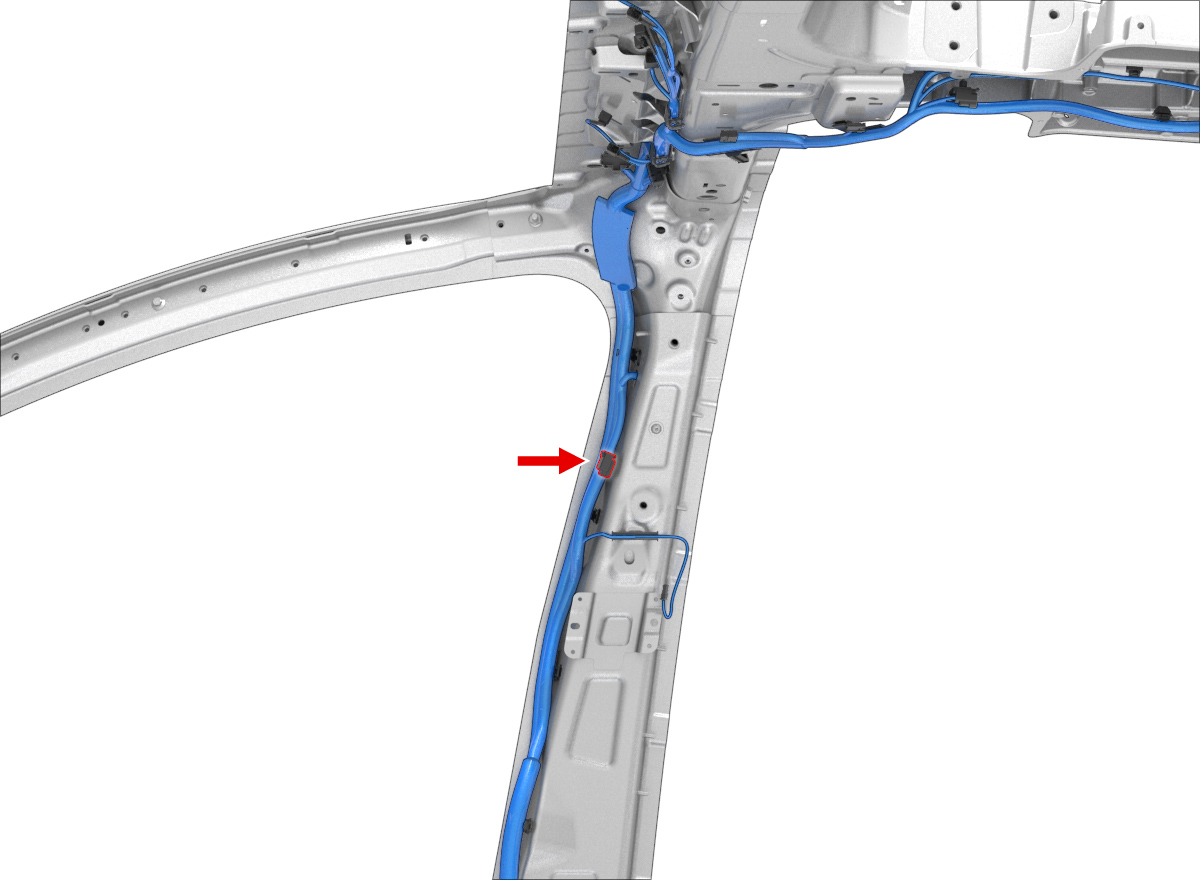

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X052	20
2	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X971M	12
3	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X490	8
4	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X488	7
5	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35
6	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X978M	3
7	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X685	3
8	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X062	9
9	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X685	7
10	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X978M	18
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X052	5
13	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X971M	13
14	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X490	7
15	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X488	5
16	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35
17	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X978M	4
18	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X685	4
19	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X062	10
20	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X685	6
21	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X978M	19
22	unused
