X823M

Tesla Part Number
1045760-02-A
Connector
ROSENBERGER 59Z176-C01-C
Color
BU

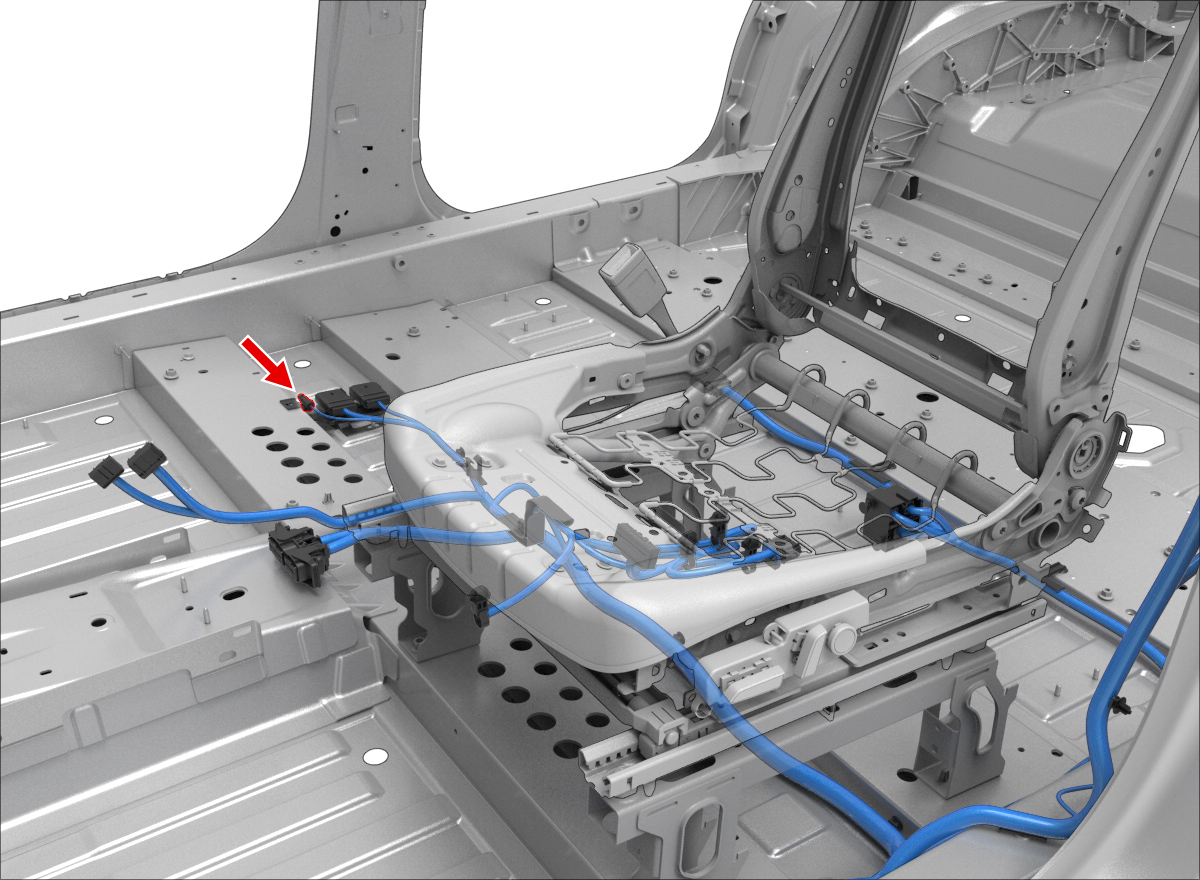

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59S16A-102T4COAXMBKRG316ROSENBERGER59K14B-102-50X8161
