X832

Tesla Part Number
1090267-08-A
Connector
ROSENBERGER 59K27D-1M4Z4-I
Color
BG

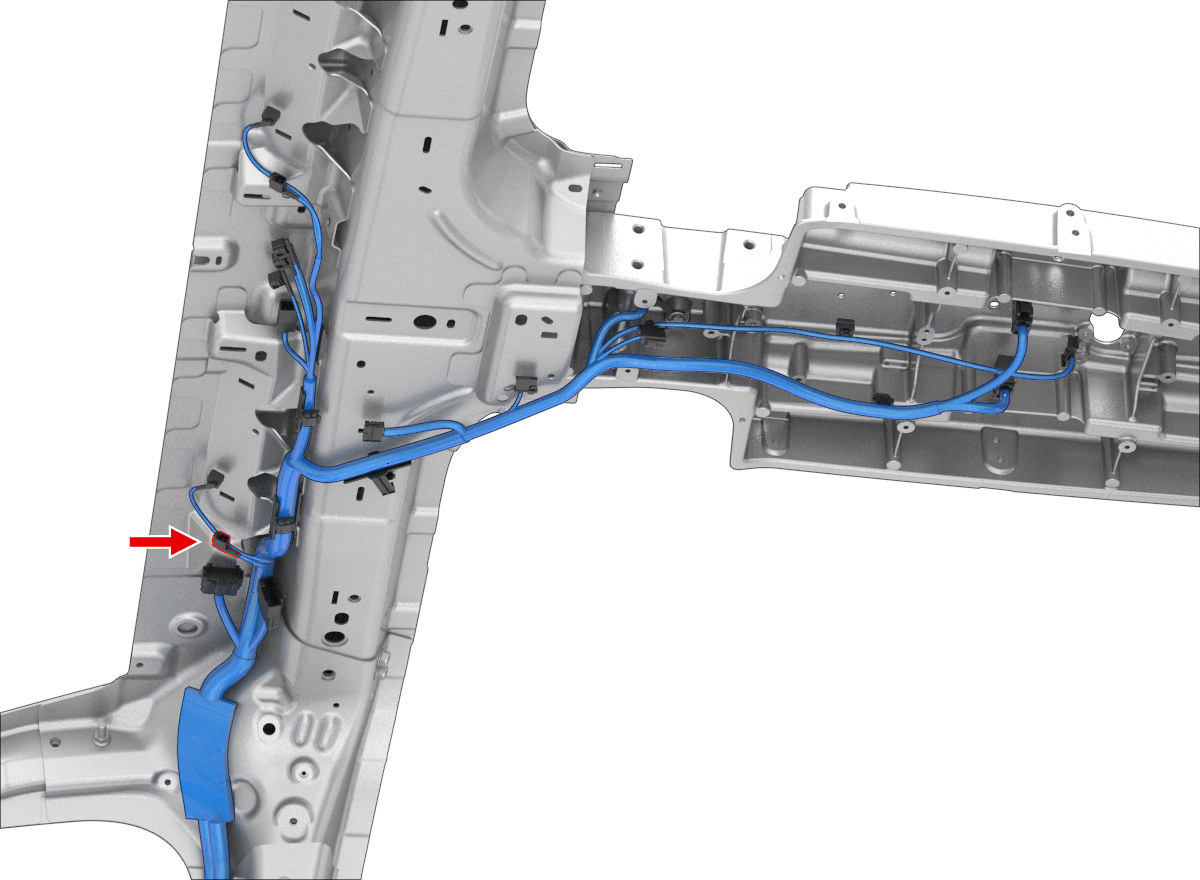

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-COAX-LCOAXBKD302X8042
