X890

Tesla Part Number
1048705-00-A
Connector
ROSENBERGER 59Z115-000-A
Color
BK

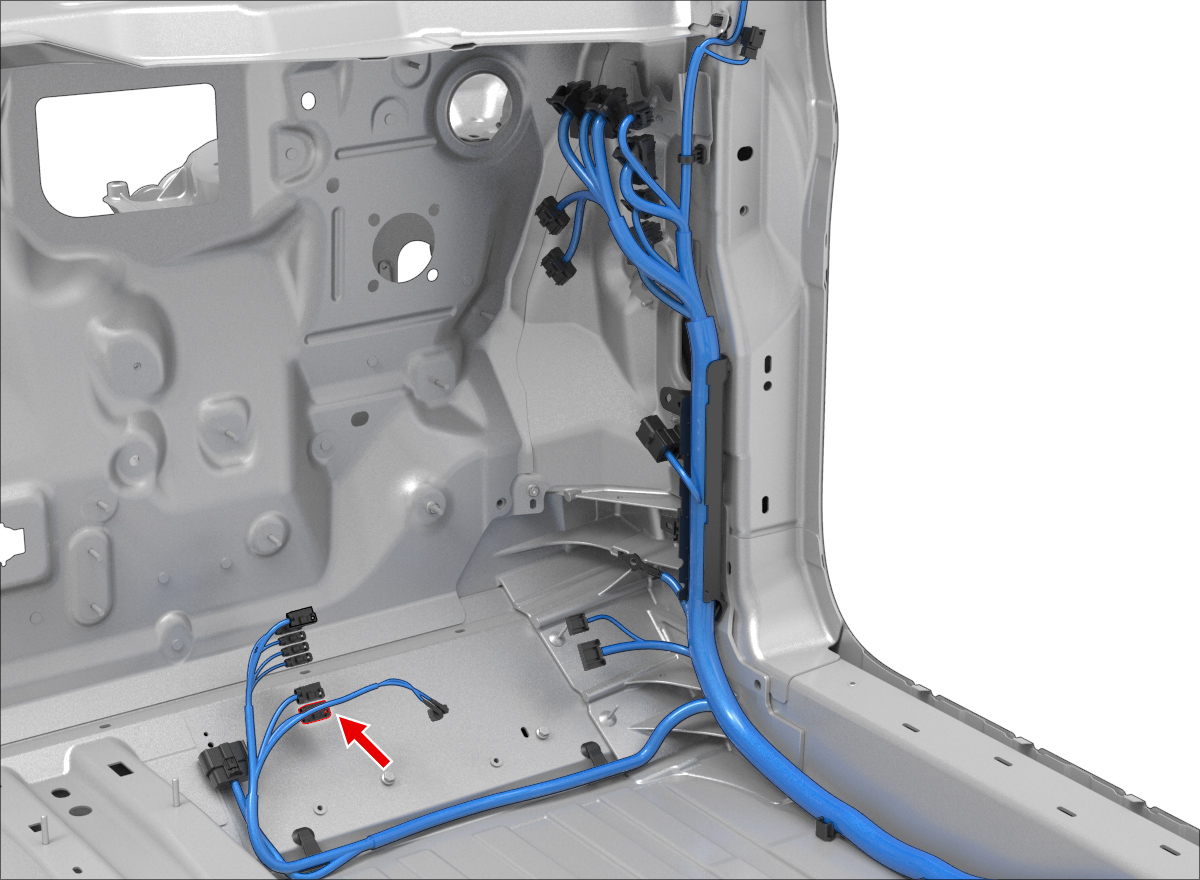

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K16B-102T4COAXFBKRG316X894F2
2ROSENBERGER59K16B-102T4COAXFBKRG316X894F1
