X895F

Tesla Part Number
1099356-02-A
Connector
ROSENBERGER 59Z127-000-C
Color
BU

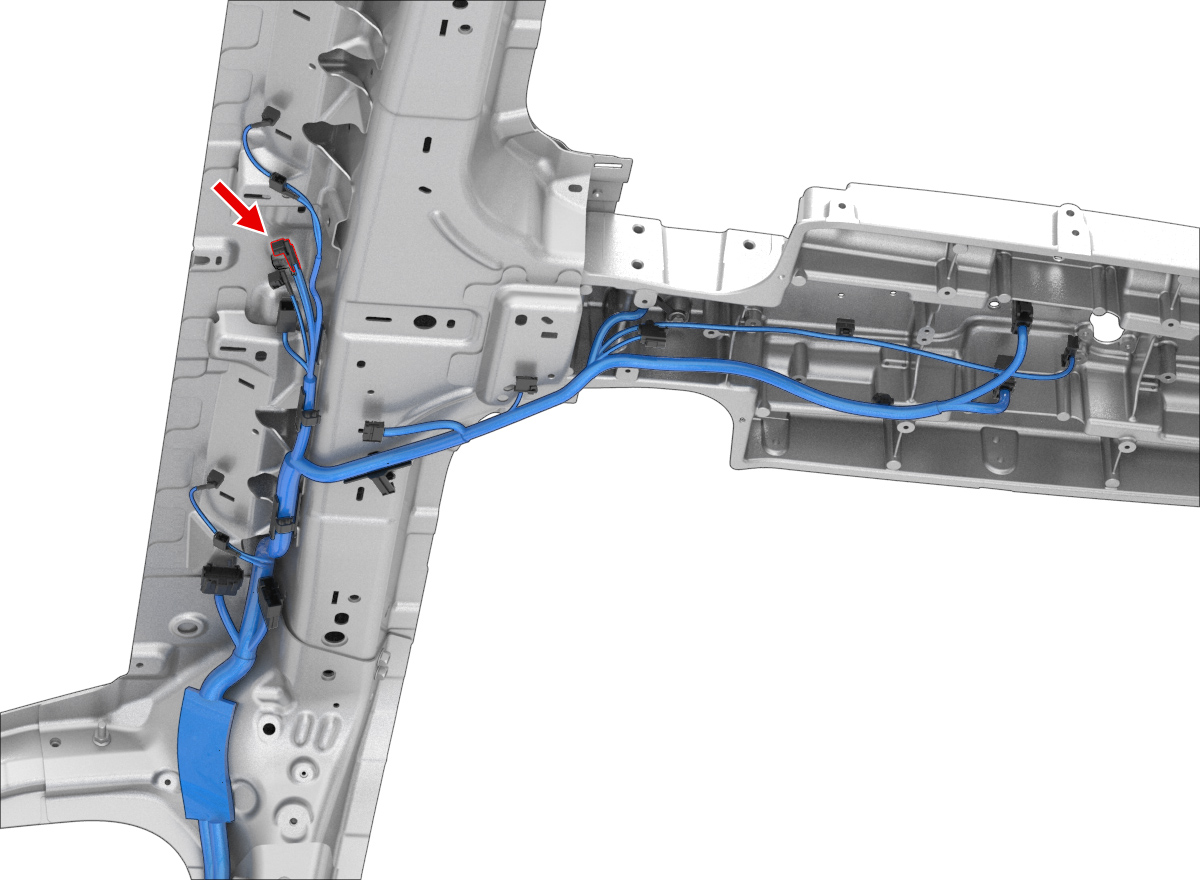

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K26A-102Z4COAXBKRG316X8911
2ROSENBERGER59K26A-102Z4COAXBKRG316X8711
