X895M

Tesla Part Number
1049861-02-A
Connector
ROSENBERGER 59Z120-C00-C
Color
BU

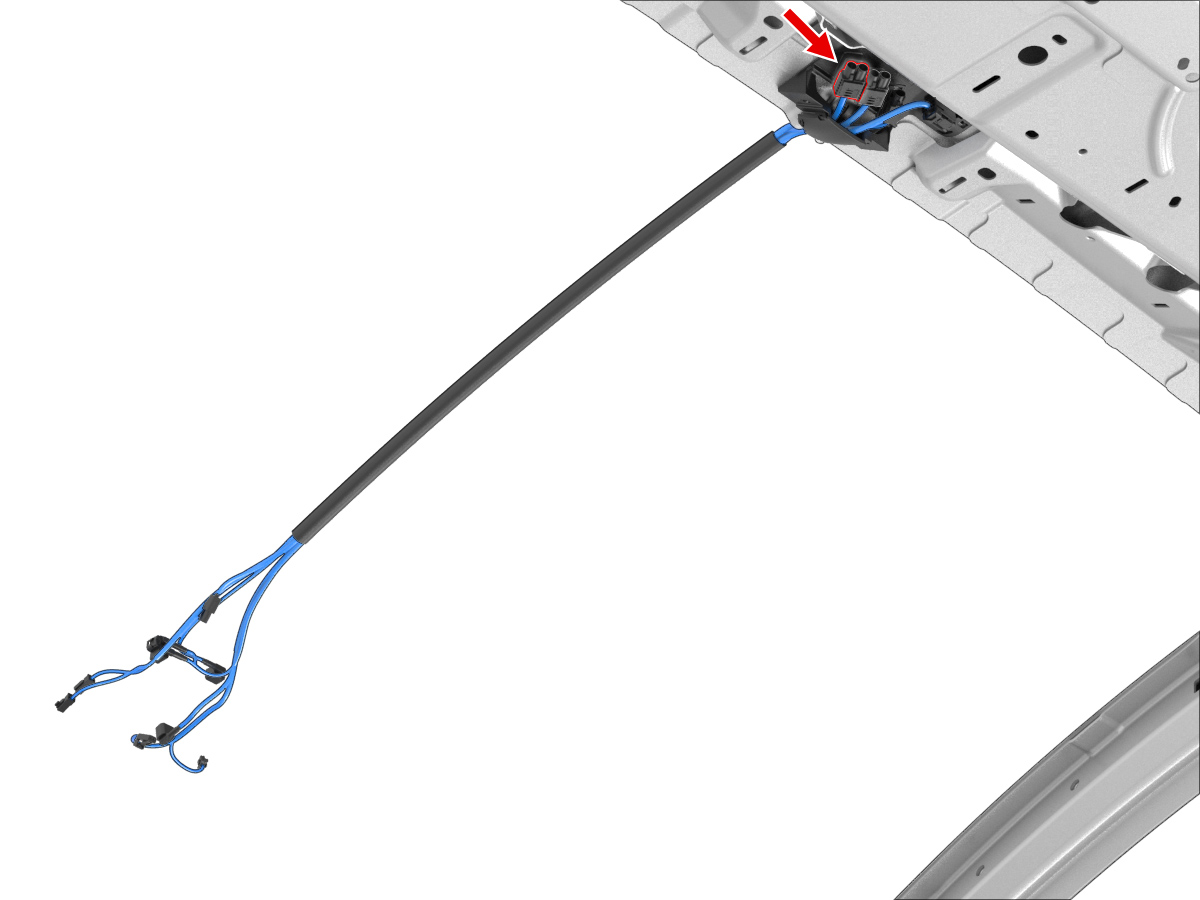

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59S16A-102T4COAXMBKRG316X8981
2ROSENBERGER59S16A-102T4COAXMBKRG316X8301
